CNC turning is a precision machining process used to create accurate cylindrical and concentric components by removing material from rotating stock. The controlled toolpaths deliver stable diameters, clean surface finishes, and consistent dimensional repeatability for both prototypes and production parts.
A spindle rotates the raw material while cutting tools shape external and internal features such as profiles, bores, grooves, and threads. This method ensures stable geometry and predictable accuracy.
The machine executes programmed feeds, speeds, and tool motions to achieve precise dimensions.
Different types of lathes handle different levels of work, from basic turning of round parts to advanced machines that produce very small or complex shapes. Each type helps improve stability, tool control, and accuracy during machining.
Our Waterjet cutting capabilities are engineered for consistent accuracy, smooth finishes, and efficient production cycles across metal and plastic components. Each setup supports reliable machining for both prototypes and large-batch manufacturing.

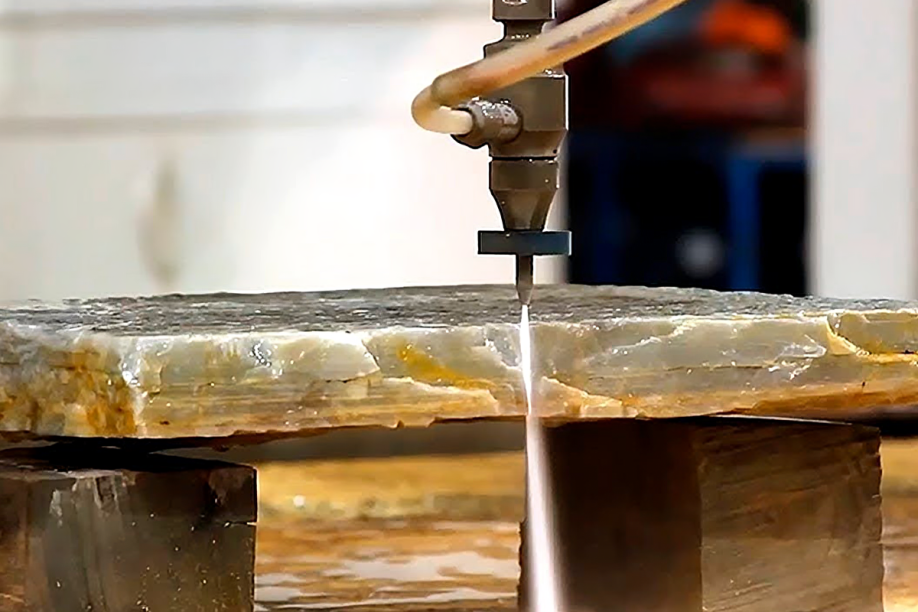

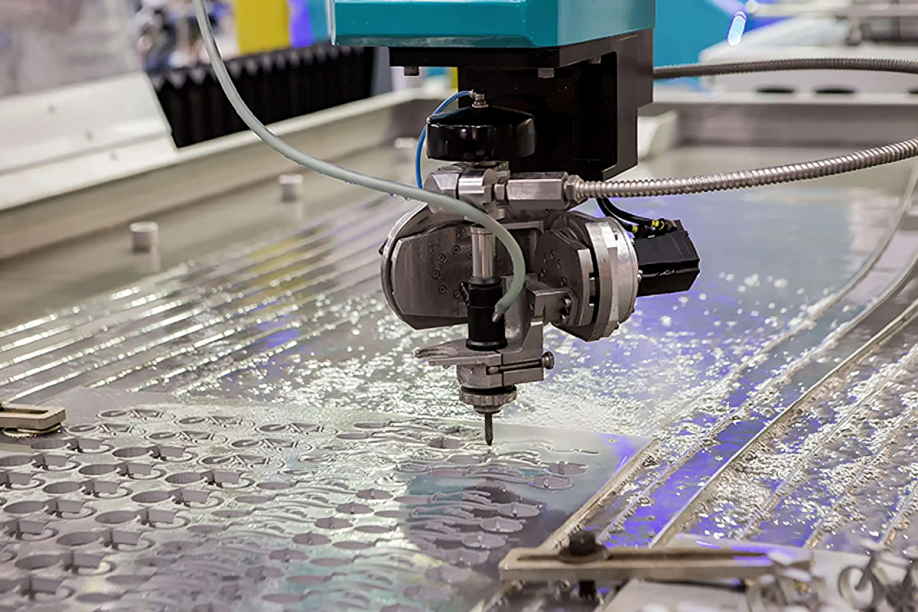

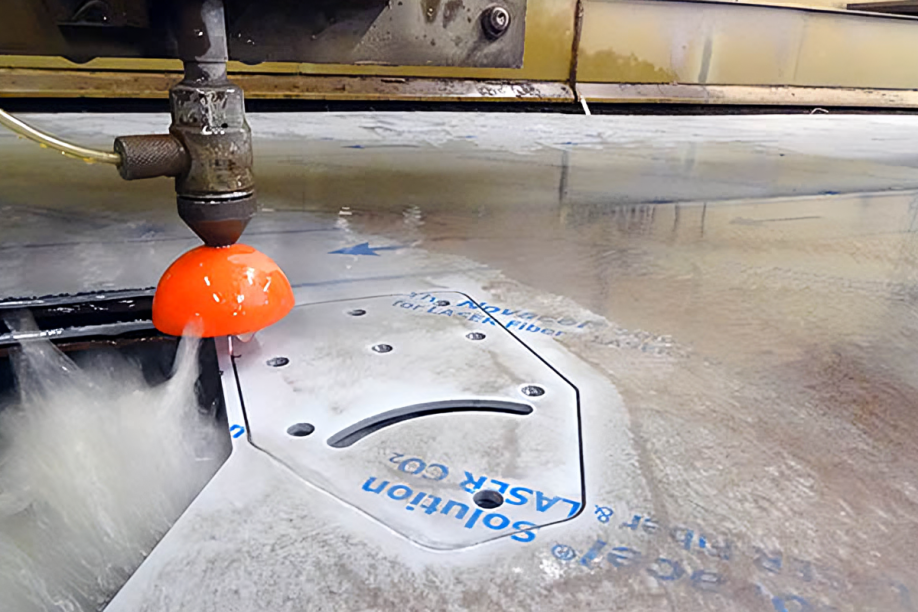

Waterjet cutting is a subtractive machining technique which involves cutting metal and plastic material in the form of precise and repeatable shapes using 3-axis, 4-axis and 5-axis machines. Best suited to complicated geometries, strict tolerances, and high surface finishes on prototype and production components.
Waterjet cutting Services is a subtractive machining technique which involves cutting metal and plastic material in the form of precise and repeatable shapes using 3-axis, 4-axis and 5-axis machines. Best suited to complicated geometries, strict tolerances, and high surface finishes on prototype and production components.
Waterjet cutting is a subtractive machining technique which involves cutting metal and plastic material in the form of precise and repeatable shapes using 3-axis, 4-axis and 5-axis machines. Best suited to complicated geometries, strict tolerances, and high surface finishes on prototype and production components.
Waterjet cutting is a subtractive machining technique which involves cutting metal and plastic material in the form of precise and repeatable shapes using 3-axis, 4-axis and 5-axis machines. Best suited to complicated geometries, strict tolerances, and high surface finishes on prototype and production components.
| Aluminium Alloy | Description | Finishing Options | Applications |
|---|---|---|---|
| 6061 | Versatile and commonly used for structural applications. | Anodizing, Powder Coating, Polishing | Construction, Aerospace, Automotive |
| 7075 | High strength, ideal for aerospace and military applications. | Anodizing, Powder Coating, Polishing | Aerospace, Military, High-Strength Components |
| 2024 | Known for its high strength and excellent fatigue resistance. | Anodizing, Cladding, Painting | Aerospace, Military, Structural Components |
| 5052 | Good corrosion resistance and formability, used in marine and automotive applications. | Anodizing, Painting, Polishing | Marine, Automotive, Sheet Metal Work |
| 5083 | Exceptional performance in extreme environments, particularly marine applications. | Anodizing, Painting, Polishing | Marine, Chemical, Industrial |
| 6082 | Excellent extrudability, used for architectural and engineering applications. | Anodizing, Powder Coating, Polishing | Architecture, Engineering, Window Frames |
| 7050 | High strength and stress corrosion resistance, often used in aerospace. | Anodizing, Cladding, Painting | Aerospace, High-Stress Components |
| 1100 | Commercially pure aluminum, excellent corrosion resistance and workability. | Anodizing, Painting, Polishing | Chemical Equipment, Food Processing, Heat Exchangers |
| Brass Alloy | Description | Finishing Options | Applications |
|---|---|---|---|
| C260 | Cartridge brass, excellent for cold working. | Plating, Polishing, Lacquering | Ammunition, Heat Exchangers, Plumbing |
| C360 | Free machining brass, used for precision parts. | Plating, Polishing, Lacquering | Precision Machined Parts, Fasteners, Plumbing |
| C353 | High leaded brass, high strength, used in plumbing. | Plating, Polishing, Lacquering | Plumbing, Fasteners, Valve Components |
| C385 | Architectural bronze, applications for its decorative appeal. | Plating, Polishing, Lacquering | Architectural Trim, Ornamental Hardware, Plumbing |
| C272 | Yellow brass, excellent corrosion resistance, used in electrical components. | Plating, Polishing, Lacquering | Electrical Components, Fasteners, Plumbing |
| Copper Alloy | Description | Finishing Options | Applications |
|---|---|---|---|
| C101 | Oxygen-free, high conductivity, used in electrical applications. | Plating, Polishing, Lacquering | Electrical Conductors, Switches, Terminals |
| C110 | Electrolytic tough pitch, highly conductive, used in electrical and plumbing. | Plating, Polishing, Lacquering | Electrical Wiring, Plumbing, Busbars |
| C122 | Phosphorus-deoxidized, used in heat exchangers and radiators. | Plating, Polishing, Lacquering | Heat Exchangers, Radiators, Plumbing |
| C172 | Beryllium copper, high strength, used in aerospace and oil drilling. | Plating, Polishing, Lacquering | Aerospace, Oil Drilling, Springs |
| C194 | High conductivity, used in automotive and electrical applications. | Plating, Polishing, Lacquering | Automotive Connectors, Electrical Connectors, Springs |
| C210 | Low brass, good ductility and strength, used in fasteners and hardware. | Plating, Polishing, Lacquering | Fasteners, Hardware, Musical Instruments |
| C220 | Commercial bronze, used in jewelry and musical instruments. | Plating, Polishing, Lacquering | Jewelry, Musical Instruments, Architectural Hardware |
| C230 | Red brass, used in architectural applications and hardware. | Plating, Polishing, Lacquering | Architectural Applications, Hardware, Plumbing |
| Grade | Description | Finishing Options | Applications |
|---|---|---|---|
| 301 | Excellent machinability, used for making automotive parts bolts, nuts, and screws. | Polishing, Passivation, Bead blasting | Used for making automotive parts, bolts, nuts, and screws. |
| 304 | Most versatile and widely used stainless steel, used in kitchen equipment tanks, piping, and tubing. | Polishing, Brushing, Passivation | Used in kitchen equipment, tanks, piping, and tubing. |
| 304L | Low carbon version of 304, used for chemical containers and transport. | Electropolishing, Passivation, Bead blasting | Used for chemical containers and transport. |
| 316 | Contains molybdenum for increased corrosion resistance, used in marine applications and chemical processing equipment. | Polishing, Passivation, Bead blasting | Used in marine applications and chemical processing equipment. |
| 316L | Low carbon version of 316, used for surgical instruments and marine hardware. | Electropolishing, Passivation, Bead blasting | Used for surgical instruments and marine hardware. |
| 410 | Martensitic grade, used for fasteners and medical instruments. | Hardening, Polishing, Passivation | Used for fasteners and medical instruments. |
| 416 | High machinability, used for gears, shafts, and valves. | Polishing, Passivation, Bead blasting | Used for gears, shafts, and valves. |
| 420 | High hardness, used for surgical instruments and cutlery. | Hardening, Polishing, Passivation | Used for surgical instruments and cutlery. |
| 430 | Ferritic grade, used for automotive trim and dishwashers. | Polishing, Brushing, Passivation | Used for automotive trim and dishwashers. |
| Steel Alloy | Description | Finishing Options | Applications |
|---|---|---|---|
| 4140 | Chromium-molybdenum steel with high toughness and good fatigue strength. | Heat Treating, Anodizing, Powder Coating | Gears, Shafts, High-Stress Components |
| 4340 | Nickel-chromium-molybdenum steel with excellent toughness and strength. | Heat Treating, Anodizing, Powder Coating | Aircraft Landing Gear, Automotive Parts, Heavy Duty Shafts |
| 8620 | Nickel-chromium-molybdenum alloy steel, case hardening steel. | Carburizing, Heat Treating, Plating | Gears, Pins, Automotive Parts |
| 1018 | Low carbon steel, good weldability and machinability. | Painting, Powder Coating, Galvanizing | Structural Applications, Shafts, Spindles |
| 1045 | Medium carbon steel, high strength and impact resistance. | Heat Treating, Plating, Painting | Gears, Shafts, Machinery Parts |
| 4130 | Chromium-molybdenum alloy steel, good strength and toughness. | Heat Treating, Anodizing, Powder Coating | Aircraft Components, Bicycle Frames, Automotive Parts |
| 1210 | Low carbon steel, good formability and weldability. | Galvanizing, Painting, Powder Coating | Automotive Parts, Machinery Components, Structural Steel |
| 17-4 PH | Precipitation-hardening stainless steel, high strength and hardness. | Heat Treating, Anodizing, Passivation | Aerospace Components, High-Strength Applications |
| Titanium Alloy | Description | Finishing Options | Applications |
|---|---|---|---|
| Grade 1 | Commercially pure titanium, excellent corrosion resistance and formability. | Anodizing, Polishing, Sandblasting | Chemical Processing, Marine, Medical |
| Grade 2 | Commercially pure titanium, balance of strength and ductility. | Anodizing, Polishing, Sandblasting | Aerospace, Medical, Marine |
| Grade 5 (Ti-6Al-4V) | Most commonly used titanium alloy, high strength and light weight. | Anodizing, Polishing, Heat Treating | Aerospace, Medical Implants, Marine |
| Grade 9 | Titanium alloy with good weldability and cold formability. | Anodizing, Polishing, Sandblasting | Aerospace, Chemical Processing, Marine |
| Grade 23 (Ti-6Al-4V ELI) | Extra-low interstitial variant of Grade 5, high strength and toughness. | Anodizing, Polishing, Heat Treating | Medical Implants, Aerospace, Marine |
| Grade 7 | Commercially pure titanium with excellent corrosion resistance. | Anodizing, Polishing, Sandblasting | Chemical Processing, Marine, Medical |
| Grade 12 | Titanium alloy with excellent corrosion resistance and strength. | Anodizing, Polishing, Heat Treating | Chemical Processing, Marine, Aerospace |
| Plastic Material | Description | Finishing Options | Applications |
|---|---|---|---|
| ABS | Acrylonitrile Butadiene Styrene, good impact resistance and toughness. | Painting, Plating, Sanding | Automotive Parts, Consumer Products, Enclosures |
| PC | Polycarbonate, high impact resistance and transparency. | Polishing, Sandblasting, Painting | Optical Discs, Safety Equipment, Automotive Parts |
| PMMA | Polymethyl Methacrylate (Acrylic), excellent optical clarity and weather resistance. | Polishing, Sanding, Painting | Displays, Lenses, Lighting Fixtures |
| POM | Polyoxymethylene (Delrin/Acetal), high stiffness and low friction. | Machining, Sanding, Polishing | Gears, Bearings, Medical Devices |
| PEEK | Polyetheretherketone, high temperature and chemical resistance. | Machining, Sanding, Polishing | Aerospace, Medical Implants, Semiconductor Parts |
| PP | Polyphenylene , high mechanical and thermal properties. | Machining, Sanding, Polishing | Automotive, Electrical Components, Industrial Applications |
| PA66 | Polyamide (Nylon 66), high mechanical strength and rigidity. | Machining, Sanding, Polishing | Mechanical Parts, Automotive, Electrical Insulation |
| PEI | Polyetherimide (Ultem), high strength and excellent electrical properties. | Machining, Sanding, Polishing | Aerospace, Medical Devices, Electrical Components |
| SAN | Styrene Acrylonitrile, good chemical resistance and transparency. | Machining, Sanding, Polishing | Housewares, Cosmetic Containers, Automotive Parts |
| HIPE | High Impact Polystyrene, good impact resistance and machinability. | Machining, Sanding, Painting | Packaging, Consumer Products, Electrical Insulation |
| HIPD | High Impact Polypropylene, high impact resistance and low density. | Machining, Sanding, Painting | Automotive Parts, Industrial Applications, Consumer Goods |
| Fiber-Reinforced Materials | Composite materials with enhanced mechanical properties. | Machining, Sanding, Painting | Aerospace, Automotive, Sporting Goods |
Precision-turned parts benefit from specialized surface treatments that enhance strength, durability, and overall performance. These treatments are ideal for optimizing the functionality of shafts, bushings, and cylindrical components.
The quickest and most economical option, leaving visible tool marks and potentially sharp edges or burrs. Surface roughness is approximately 125 µin Ra, and burrs can be removed upon request.
A thick chromium coating that boosts hardness, wear resistance, and durability. Perfect for high-stress parts like shafts and pistons.
A thin, electroplated nickel layer that enhances wear and corrosion resistance. Provides a bright, attractive finish for functional parts.
A chemical treatment that creates a dark, matte black surface on steel parts. Offers mild corrosion resistance and reduces light reflection.
A smooth, glossy finish achieved by mechanical buffing. Ideal for decorative parts requiring enhanced shine and low roughness.
A linear, satin-like texture created using abrasive belts or brushes. It reduces minor imperfections and offers a clean, decorative appearance.
Need a specific finish? Submit an RFQ, and we’ll work with you to find a tailored solution for your project.
Creates a smooth, matte finish by media-blasting, typically with glass beads, offering an improved aesthetic and uniform surface texture.
Waterjet cutting centers support a wide range of diameters, lengths, and feature types, ensuring reliable machining for small precision components and larger rotational parts.
| Operation | Max Diameter | Max Length |
|---|---|---|
| Standard Turning | Ø300 mm | 500 mm |
| Live Tooling | Ø250 mm | 400 mm |
| Swiss-Type Turning | Ø32 mm | 150 mm |
Effective design choices help reduce machining time, improve accuracy, and maintain stable part geometry during turning.
| Parameter | Specification |
|---|---|
| Internal Radii | – Avoid sharp internal corners; CNC tools naturally create radii. – Recommended internal radius: 2.6 × tool diameter. – Deep pockets: tool length should not exceed 10× diameter for stability. |
| Threads & Tapped Holes | – For threads Ø1.5-6 mm: depth = 3× diameter. – For threads Ø6 mm: depth = 4× diameter. – Custom threads and fine-pitch threads available upon request. – For turned parts, laser marking is recommended for identification. |
| Minimum Wall Thickness | – Metals: 0.3-1.0 mm. – Plastics: 1.2-1.5 mm. – Thin walls increase vibration, deflection, and machining marks. |
| Hole Sizes & Depth | – Minimum hole diameter: 0.020″ (0.50 mm) depending on tool availability. – Recommended maximum depth: 4× diameter for reliable chip evacuation. – For precision bores, reaming or boring improves tolerance accuracy (±0.002″ typical). |
| Undercuts | – Supported profiles: square, full radius, dovetail, and custom reliefs. – Specialized tools may increase machining time or cost. |
| Text & Engraving | –Waterjet cutting text: minimum 0.6 mm width and 0.1 mm depth. – For turned parts or finer marking, laser engraving is preferred. |
| Avoid Over-Constraint | – Parts should not require excessive fixturing; design for stable flat surfaces and supported geometries. – Avoid ultra-thin features, unsupported tabs, and unnecessary complexity. |
| DFM Review Available | – Our engineers check your part for manufacturability, tolerance risks, tool access, and stability — ensuring efficient machining and high-quality output. |
Our Waterjet cutting centers support a wide range of diameters, lengths, and feature types, ensuring reliable machining for small precision components and larger rotational parts.
| Operation | Max Diameter | Max Length |
|---|---|---|
| Standard Turning | Ø300 mm | 500 mm |
| Live Tooling | Ø250 mm | 400 mm |
| Swiss-Type Turning | Ø32 mm | 150 mm |
Every turned part is inspected using certified metrology workflows to ensure dimensional accuracy, surface integrity, and repeatable performance across all production volumes.
CMM inspection for critical datums, diameters, roundness, and concentricity
Bore gauges, micrometers, and height systems for fast in-process checks
Supports tight-tolerance features down to ±0.001 in (±0.025 mm)
Surface roughness checks (Ra 3.2 μm standard; Ra 0.8 μm optional)
Runout and concentricity measurement for rotational components
Compliance with turning-specific finishing standards
Inspection aligned with ISO 2768-mK and ASME Y14.5
Verification of profile, position, perpendicularity, parallelism, circularity
Ensures geometric stability under real machining conditions
FAI reports, material certificates (MTRs), and CMM data available
Lot tracking for aerospace, medical, and industrial requirements
Secure record-keeping for full audit trail and quality compliance
Yicen Precision is serving a broad spectrum of industries, covering aerospace, automotive, electronics, medical, and more. We specialize in providing high-quality, reliable parts tailored to meet the unique engineering challenges of each industry.
Easily upload your CAD files through our secure online platform to get started.
Choose your material, finish, tolerances, and preferred lead time to match your project needs.
Receive a real-time quote based on your design and selected specifications, no delays.
Your parts are manufactured by trusted partners, quality-checked, and delivered to your door on time.
Advantages
Waterjet cutting provides a range of benefits, ensuring efficient, high-quality production.
Applications
Waterjet cutting is widely utilized in various industries to produce high-precision parts and components:
We specialize in converting your ideas into high-quality, functional components with unparalleled speed and accuracy. With advanced technology and expert craftsmanship, we create parts that meet the most complex specifications.
How do I get a quote for water jet cutting at Yicen Precision?
To receive a quote for water jet cutting, simply upload your design files, such as STL or DXF formats, along with material preferences, thicknesses, and part quantities. Our team will assess your design and provide a detailed quote based on your project requirements. We ensure transparent pricing and offer tailored solutions for your specific needs, making sure to meet both your budget and timeline.
What are the limitations of water jet cutting?
While water jet cutting is highly versatile, it does have some limitations. It is generally slower than methods like laser cutting, especially for thinner materials. Additionally, the precision may decrease slightly when cutting very thin or intricate parts due to the jet stream’s width. Water jet cutting also requires careful management of material thickness to avoid over-cutting or under-cutting, and abrasive materials can increase wear on the cutting nozzles over time.
What is the maximum size of parts that can be cut with a water jet?
At Yicen Precision, our water jet cutting equipment can accommodate large sheets of material, with a cutting bed size of up to 12 feet by 6 feet (3.7 meters by 1.8 meters). This large cutting area allows us to handle both small and large parts, ensuring that we can meet a wide variety of production needs, from custom prototypes to large-scale manufacturing runs.
What are the environmental benefits of water jet cutting?
Water jet cutting is an environmentally friendly process as it uses water to cut materials, generating minimal waste and no hazardous fumes or gases. It also eliminates the need for harmful chemicals or coolants, making it a safe and sustainable option. The process is efficient in terms of material usage, as it can produce parts with minimal material waste, which reduces the overall environmental impact of production.
What is the edge quality of parts produced by water jet cutting?
Water jet cutting produces a smooth, clean edge with minimal burr formation, which is ideal for applications where a high-quality finish is required. The absence of heat distortion ensures that the material properties remain unchanged, providing excellent results for parts that require tight tolerances and high-quality surfaces. Additionally, water jet cutting can eliminate the need for secondary finishing processes.
Can water jet cutting be used for intricate designs?
Yes, water jet cutting is ideal for producing intricate and detailed designs. The fine stream of water can cut complex shapes and patterns with high precision. Whether your project requires small, delicate features or larger, more detailed designs, water jet cutting offers the flexibility to handle both, making it an excellent choice for prototypes, custom parts, and artistic projects.
What is the maximum thickness of material you can cut with a water jet?
The maximum thickness we can cut with a water jet depends on the material being used. For metals, we can cut up to 6 inches (150 mm) thick, while for softer materials such as foam or rubber, we can handle even greater thicknesses. The versatility of water jet cutting allows us to cater to projects requiring both thin and thick material cuts with high precision.
What is the accuracy of water jet cutting at Yicen Precision?
At Yicen Precision, our water jet cutting service is capable of achieving high precision, with tolerances as tight as ±0.003 inches (0.076 mm). This level of accuracy makes it ideal for complex and detailed cuts, ensuring your parts meet exact specifications. Water jet cutting also produces smooth, burr-free edges, which is essential for applications requiring high-quality finishes.
How fast is the water jet cutting process?
The speed of water jet cutting depends on factors such as material thickness, part complexity, and the required precision. Generally, water jet cutting is faster than traditional methods like machining, but may be slower than laser cutting, especially for thin materials. However, the process does not require post-processing, such as deburring, which can save time in the overall production process.
