Yicen Precision offers high-quality Fused Deposition Modeling (FDM) services, delivering durable thermoplastic parts with fast turnaround and tight tolerances. Our certified process, backed by ISO 9001:2015, AS9100D, and ISO 13485, ensures consistent, large-format production suitable for industries like automotive, aerospace, and more. Upload your CAD file today for an instant quote and start bringing your designs to life.
Fused Deposition Modeling (FDM) is a material extrusion-based additive manufacturing process where thermoplastic filament is melted and deposited layer by layer. This method is perfect for creating durable parts and prototypes with high precision.
FDM uses a thermoplastic filament, melted and precisely layered to form parts.

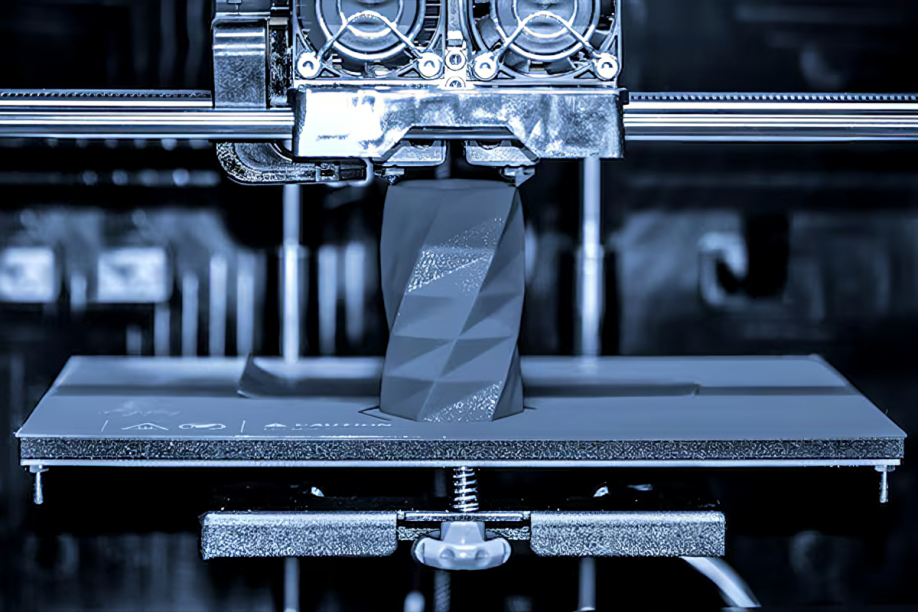

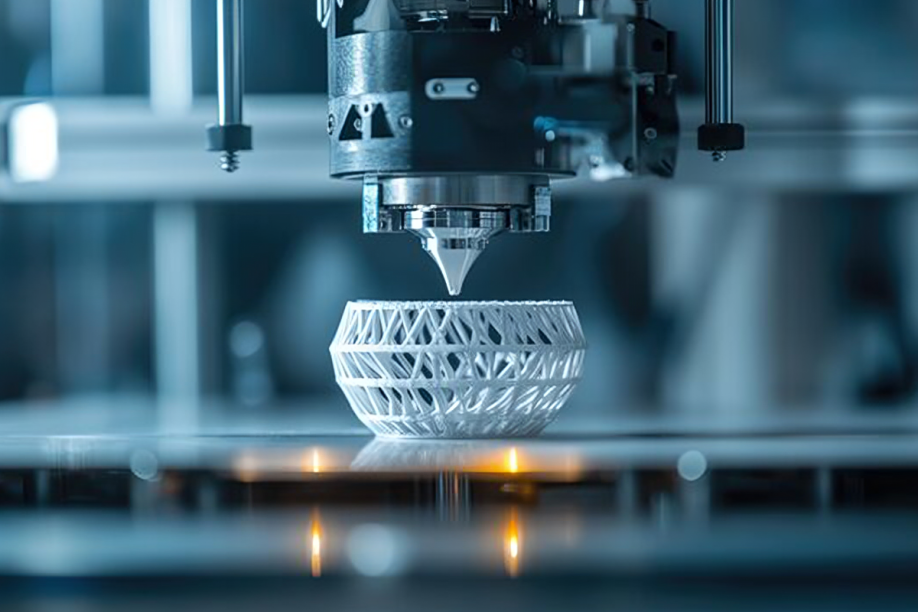

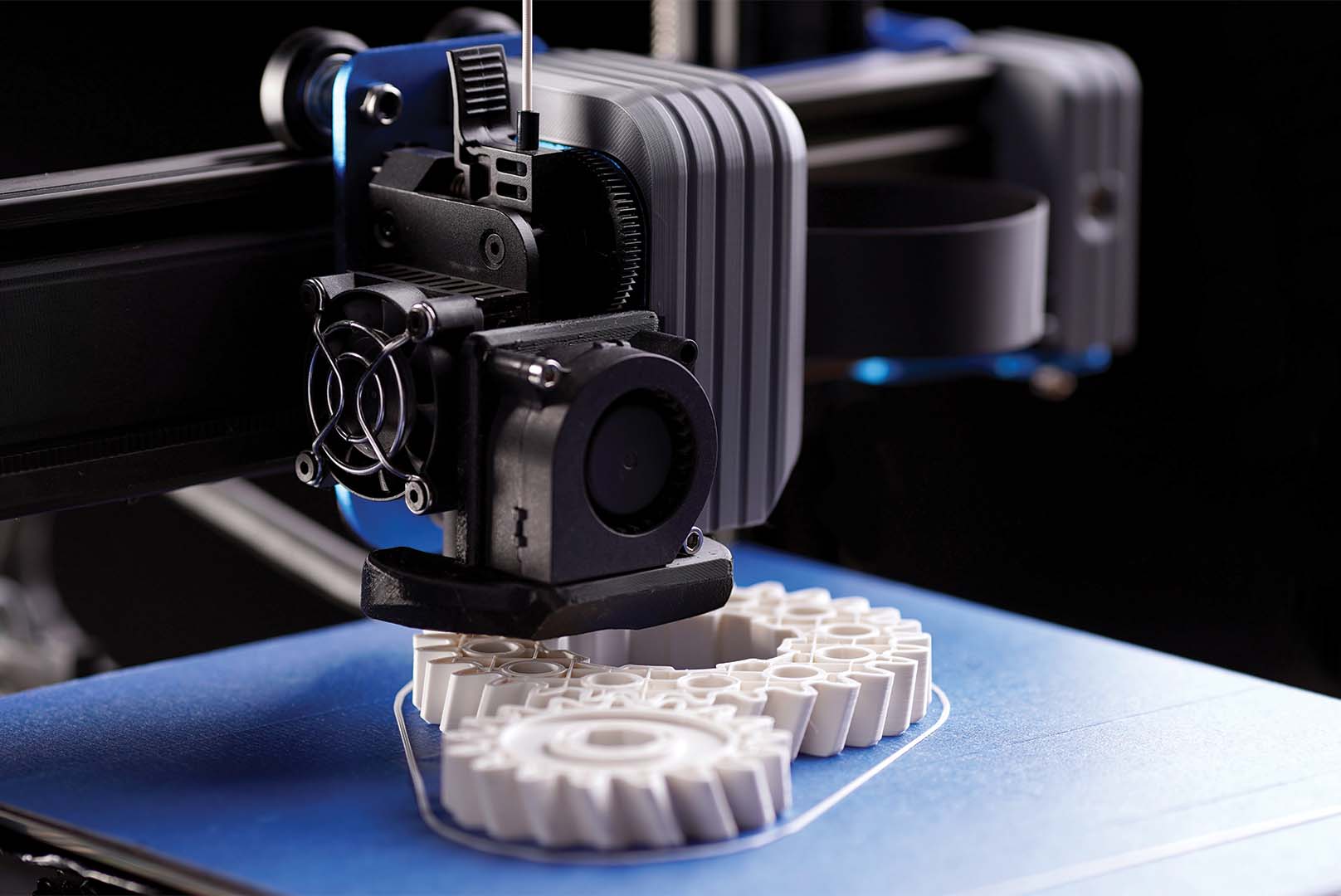

The filament is heated and extruded through a nozzle, bonding each layer to the next to create the final part.
FDM is widely used for functional prototypes and production tooling, offering both speed and reliability.
We offer Fused Deposition Modeling (FDM) with precise tolerances and flexible build sizes to meet a wide range of applications. Whether you’re working on small, detailed prototypes or large, functional parts, our FDM capabilities provide the accuracy and consistency you need for both rapid prototyping and production.
Operation | Max Layer Height | Max Build Size | Typical Dimensional Tolerance | When Secondary Machining is Recommended |
General-Purpose FDM | 0.1 mm | 300 mm x 300 mm x 300 mm | ±0.2 mm | For highly detailed or high-precision features. |
Engineering Materials | 0.1 mm | 500 mm x 500 mm x 500 mm | ±0.3 mm | For tight tolerances and functional parts. |
High-Performance FDM | 0.05 mm | 600 mm x 600 mm x 600 mm | ±0.4 mm | For larger, complex, or multi-material parts. |
At Yicen Precision, we offer a comprehensive selection of FDM 3D printing materials, from general-purpose options like ABS and PLA to high-performance materials such as Nylon and ULTEM. Whether you need durable, flexible prototypes or high-strength production tooling, our materials ensure precision, durability, and versatility for a variety of applications across industries like automotive, aerospace, and healthcare.
Material | Description | Finishing Options | Applications |
ABS | Widely used thermoplastic, ideal for prototyping and high-stress applications. | Sanding, Polishing, Painting | Prototypes, Consumer Products, Automotive |
ASA | UV-resistant thermoplastic, ideal for outdoor use and durability. | Anodizing, Powder Coating | Outdoor Components, Automotive, Electrical |
PLA | Biodegradable, easy to print with, often used for non-functional prototypes. | Polishing, Painting | Prototypes, Models, Educational Use |
PETG | Strong and durable, combines the best qualities of PET and glycol. | Polishing, Painting | Consumer Products, Medical Applications, Prototyping |
Nylon (PA, PA-CF) | Known for its strength and flexibility, often used for parts requiring durability. | Sanding, Polishing, Painting | Automotive, Aerospace, Functional Parts |
Polycarbonate (PC) | Tough, heat-resistant material that offers high impact strength. | Polishing, Painting | Aerospace, Electrical Components, Automotive |
PC-ABS | Combines polycarbonate’s impact resistance with ABS’s ease of use. | Sanding, Painting | Automotive, Electrical Housings, Prototypes |
ULTEM / High-Temp Plastics | Known for its strength at high temperatures and chemical resistance. | Polishing, Cladding | Aerospace, Medical, Industrial Parts |
Yicen Precision offers a variety of surface finishes and infill options to enhance the performance, durability, and aesthetics of your FDM 3D printed parts. Whether you need a smooth surface for functional use or a decorative finish for display, we provide tailored solutions to meet your specific requirements.
The default finish is straight from the 3D printer, offering a rougher surface with visible layer lines.
Removal of support structures post-printing, ensuring a cleaner and smoother final surface.
A post-processing step to smooth out layer lines and create a polished, uniform finish.
A glossy, smooth surface achieved by mechanical polishing, perfect for decorative parts.
A linear, satin-like texture created by abrasive brushing, ideal for reducing imperfections.
Adds a thin, electroplated nickel layer that improves wear and corrosion resistance.
Tailored solutions based on your project needs, such as special coatings or treatments.
A media-blasting technique that creates a smooth, matte finish with an improved aesthetic.
For the best results with Fused Deposition Modeling (FDM) 3D printing, following design guidelines is essential. Whether you’re creating functional prototypes or production parts, these recommendations ensure higher quality, improved efficiency, and reduced post-processing efforts.
Parameter | Specification |
Minimum Wall Thickness | Metals: 0.3-1.0 mm, Plastics: 1.2-1.5 mm. Thin walls increase deflection, vibration, and machining marks. |
Feature Size Limits | Features should be at least 0.5 mm in diameter for reliability. Smaller features may be prone to inaccuracies. |
Overhang & Support | Overhangs greater than 45° typically require support structures. Designs should minimize overhangs to reduce material use. |
Orientation Considerations | Parts should be oriented for strength and minimize the need for support material. Orientation affects both strength and print time. |
Infill Density | Higher infill percentages provide more strength but increase printing time and material costs. Lower densities reduce cost but decrease strength. |
Surface Quality | Parts with intricate details should have fine layer heights (0.1-0.2 mm) for smoother surfaces and finer detail resolution. |
Tolerance Limits | Typical FDM tolerances are ±0.2 mm, with more precise parts requiring secondary machining or post-processing. |
Cost Optimization Tips | Reduce material usage by optimizing wall thickness and minimizing the use of support material. Efficient design will lower production costs and time. |
At Yicen Precision, we prioritize quality at every stage of the FDM 3D printing process, ensuring that every part meets the highest standards of accuracy and performance. Our comprehensive quality control procedures are designed to guarantee dimensional precision, visual consistency, and repeatability for batch production.
We use advanced measurement tools, including CMMs (Coordinate Measuring Machines) and digital micrometers, to ensure that all critical features meet precise tolerances, down to the micron level.
Our experienced technicians conduct thorough visual inspections to identify any surface defects, ensuring that the final part is free of imperfections and meets aesthetic requirements.
With a focus on consistent production, we verify that each batch of parts maintains uniformity and quality, minimizing errors and ensuring that all parts meet the defined specifications.
At Yicen Precision, we provide top-tier FDM 3D printing services that are reliable, cost-effective, and tailored to meet your specific needs. Here’s why our clients trust us for their 3D printing projects
We use the latest and most reliable FDM 3D printing machines, ensuring high precision, quality, and consistent results.
Our team has extensive knowledge of FDM materials, offering a wide range of options including thermoplastics like ABS, Nylon, and PLA, each carefully selected for the best performance in your application.
We can handle large-scale prints, making us the go-to solution for big prototypes and industrial components.
Whether you need a single prototype or a production run, we offer flexible services that support your entire product development cycle.
Our engineering team is ready to help you optimize your designs for manufacturing, ensuring efficiency, accuracy, and cost-effectiveness in every project.
With streamlined processes and cutting-edge technology, we provide quick lead times without compromising on quality, helping you meet tight deadlines.
Yicen Precision is serving a broad spectrum of industries, covering aerospace, automotive, electronics, medical, and more. We specialize in providing high-quality, reliable parts tailored to meet the unique engineering challenges of each industry.
Advantages
FDM printing offers numerous benefits, especially for rapid prototyping and low-volume production.
Applications
FDM 3D printing is highly versatile and can be applied across various industries to create precise, functional parts for different applications.
We specialize in converting your ideas into high-quality, functional components with unparalleled speed and accuracy. With advanced technology and expert craftsmanship, we create parts that meet the most complex specifications.
We specialize in converting your ideas into high-quality, functional components with unparalleled speed and accuracy. With advanced technology and expert craftsmanship, we create parts that meet the most complex specifications.
What are the advantages of FDM over other 3D printing technologies?
FDM is a cost-effective 3D printing method that offers fast production times, no tooling costs, and the ability to use durable materials like ABS and Nylon. It’s best for low-volume production and prototyping, while other technologies like SLA or SLS may be better suited for high-detail or high-precision parts.
Can FDM be used for functional prototypes?
Yes, FDM is an excellent choice for creating functional prototypes, as it allows designers to test parts for fit, form, and functionality before moving to production. Nylon and Polycarbonate are particularly well-suited for parts that will undergo stress or require high durability.
Typical lead times for FDM 3D printing?
Lead times for FDM 3D printing typically range from 1 to 7 days, depending on part complexity, material selection, and build size. For larger or more intricate parts, lead times may extend, but we ensure fast production for smaller prototypes.
How strong are FDM parts?
FDM parts can be very strong, especially with materials like Polycarbonate and Nylon. The strength depends on the material chosen, the infill density, and the layer bonding. Nylon parts, for example, offer high impact resistance and flexibility, while Polycarbonate is known for its toughness and heat resistance.
Is FDM suitable for production?
Yes, FDM is suitable for low-volume production runs, rapid prototyping, and functional parts. It’s ideal for applications where custom tooling isn’t required and quick turnaround times are necessary. However, for mass production, injection molding may be more cost-effective.
