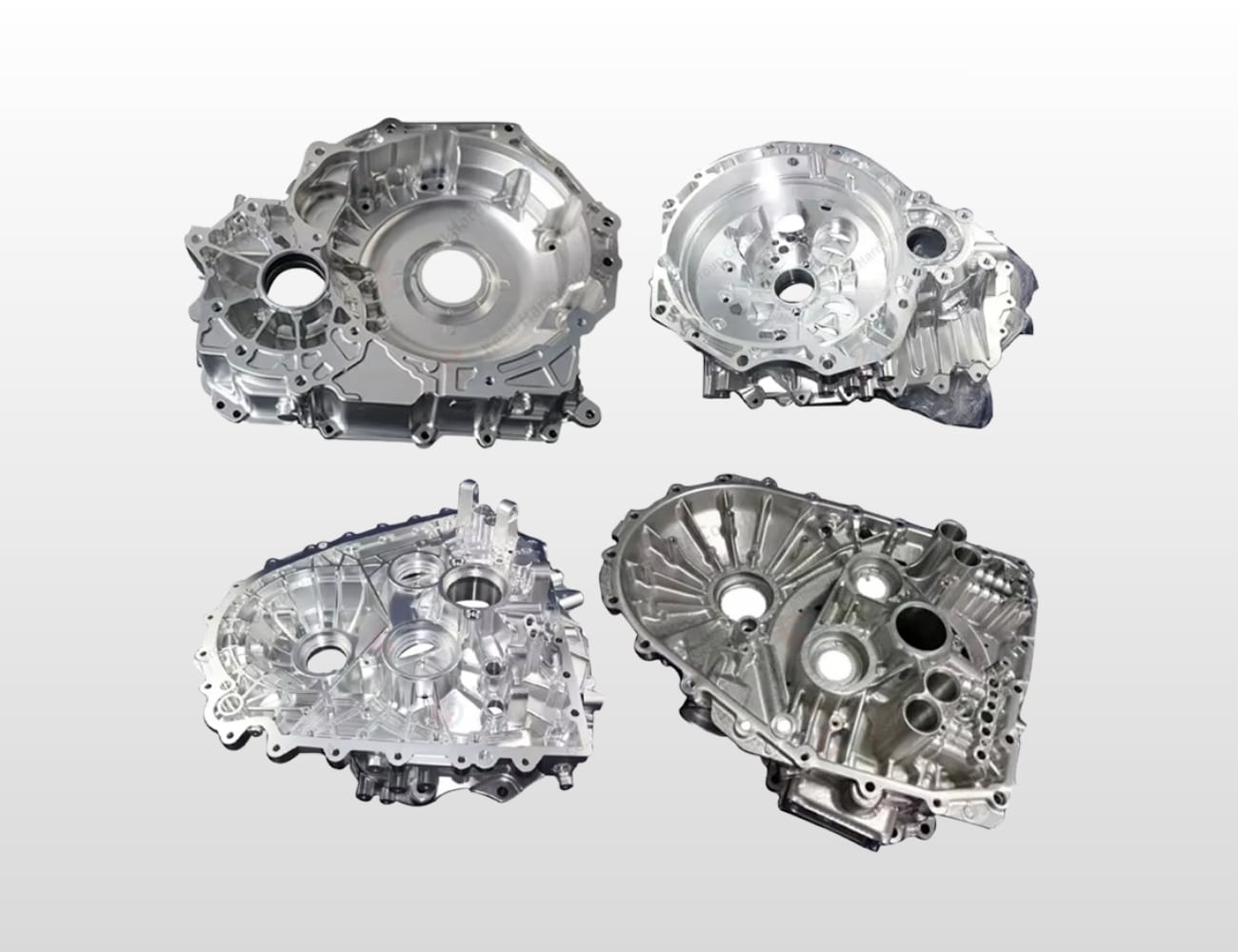

Transmission Housings CNC Machining for Automotive Industry

Transmission housings are essential structural components that protect internal gears, shafts, and synchronizers while maintaining precise bearing alignment and gear mesh patterns. These critical assemblies must provide rigid support, fluid containment, and accurate mounting interfaces for optimal drivetrain performance. Precision transmission housings CNC machining ensures proper gear alignment, minimal noise and vibration, and long-term reliability across manual, automatic, and dual-clutch transmission systems.

Yicen Precision delivers superior transmission housings CNC machining through advanced 5-axis milling centers and multi-axis lathes equipped with heavy-duty tooling systems. We machine transmission housings from aluminum alloys, magnesium, and cast iron with exceptional dimensional accuracy and complex internal features. Our ISO-compliant processes and stringent quality controls ensure every transmission housing meets exact specifications for bearing bore concentricity, mounting face flatness, and fluid sealing surfaces.

Precision CNC Machining for Transmission Housings

What is a Transmission Housing?

A transmission housing, also called a transmission case or gearbox housing, is the main structural enclosure that contains and supports all transmission components including gears, shafts, bearings, synchronizers, and hydraulic systems. It provides mounting surfaces for the engine, drivetrain, and vehicle chassis while maintaining proper alignment of rotating assemblies. Transmission housings are used in passenger vehicles, commercial trucks, heavy equipment, racing applications, and marine propulsion systems. Their critical function involves supporting bearing loads, containing transmission fluid, maintaining gear alignment, dissipating heat, and providing structural rigidity to ensure smooth power transfer from engine to wheels.

Key Technical Requirements

Transmission housings CNC machining demands exceptional precision for bearing bore alignment, mounting face flatness, and bolt hole positioning. Typical tolerances range from ±0.001″ to ±0.005″ for critical features like bearing bores, shaft centerlines, and mating surfaces. Material specifications include aluminum alloys (A380, 356) for lightweight passenger vehicles, magnesium alloys for performance applications, and cast iron or steel for heavy-duty commercial transmissions. Surface finish requirements vary: bearing bores need 16-32 Ra for proper bearing fit, while sealing surfaces require 32-63 Ra for gasket or seal compatibility. Mounting faces must maintain flatness within 0.002″ across the surface. Transmission housings must withstand torque loads exceeding 500 lb-ft, operating temperatures from -40°F to 300°F, vibration, fluid pressure, and resist corrosion from transmission fluid throughout their service life.

Manufacturing Challenges & Solutions

Machining transmission housings presents significant challenges due to large component size, complex internal cavities, multiple bearing bores requiring precise alignment, and thin-walled sections that can distort under cutting forces. Maintaining concentricity between input and output shaft bores while machining mounting surfaces and bolt patterns requires advanced fixturing and multi-axis capabilities. Cast material inconsistencies can cause dimensional variations and tool wear issues.

Yicen Precision overcomes these challenges with state-of-the-art 5-axis CNC machining centers featuring extended work envelopes and rigid construction for large housing components. Our advanced CAM software optimizes tool paths to minimize deflection in thin-walled areas while maintaining tight tolerances. We utilize precision line boring systems and custom tooling to achieve consistent bearing bore alignment and concentricity across multiple bores. Temperature-controlled facilities prevent thermal expansion during machining operations. Heavy-duty fixtures provide stable clamping without inducing stress or distortion. Our quality control includes comprehensive CMM inspection of all critical dimensions, bore alignment verification using laser measurement systems, and flatness checks on mounting surfaces.

Applications & Use Cases

Transmission housings CNC machining serves diverse automotive and industrial applications:

• Passenger Vehicle Production – Automatic and manual transmission housings for sedans, SUVs, and crossovers in OEM manufacturing (Ford, GM, Honda assemblies)
• Electric Vehicle Drivetrains – Single-speed transmission housings and gearbox cases for electric motor integration in EV and hybrid platforms
• Heavy-Duty Commercial Trucks – Robust transmission housings for Class 8 trucks, delivery vehicles, and construction equipment with high torque capacity
• Performance and Racing Applications – Lightweight transmission housings for drag racing, road racing, and high-performance street builds
• Marine Propulsion Systems – Corrosion-resistant transmission housings for inboard marine drives and commercial fishing vessels
• Agricultural and Industrial Equipment – Heavy-duty gearbox housings for tractors, combines, excavators, and material handling equipment
• Classic Vehicle Restoration – Reverse-engineered transmission housings for vintage car rebuilds and aftermarket performance conversions

Why Choose Yicen Precision for Transmission Housings?

Yicen Precision specializes in complex transmission housings CNC machining with fast turnaround times from prototype development to full-scale production runs. Our scalable manufacturing capabilities support custom low-volume projects and high-volume OEM production with consistent dimensional accuracy and quality. We provide comprehensive engineering support including DFM consultation to optimize rib structures, wall thickness, and mounting configurations for strength and manufacturability. Complete material traceability with certified mill test reports and documentation packages ensures compliance with automotive industry standards. Our cost-effective solutions leverage multi-axis machining efficiency, optimized material removal strategies, and automated inspection processes without compromising the precision and reliability your transmission housing applications require. Contact us today for technical consultation and custom transmission housings machining quotes.
