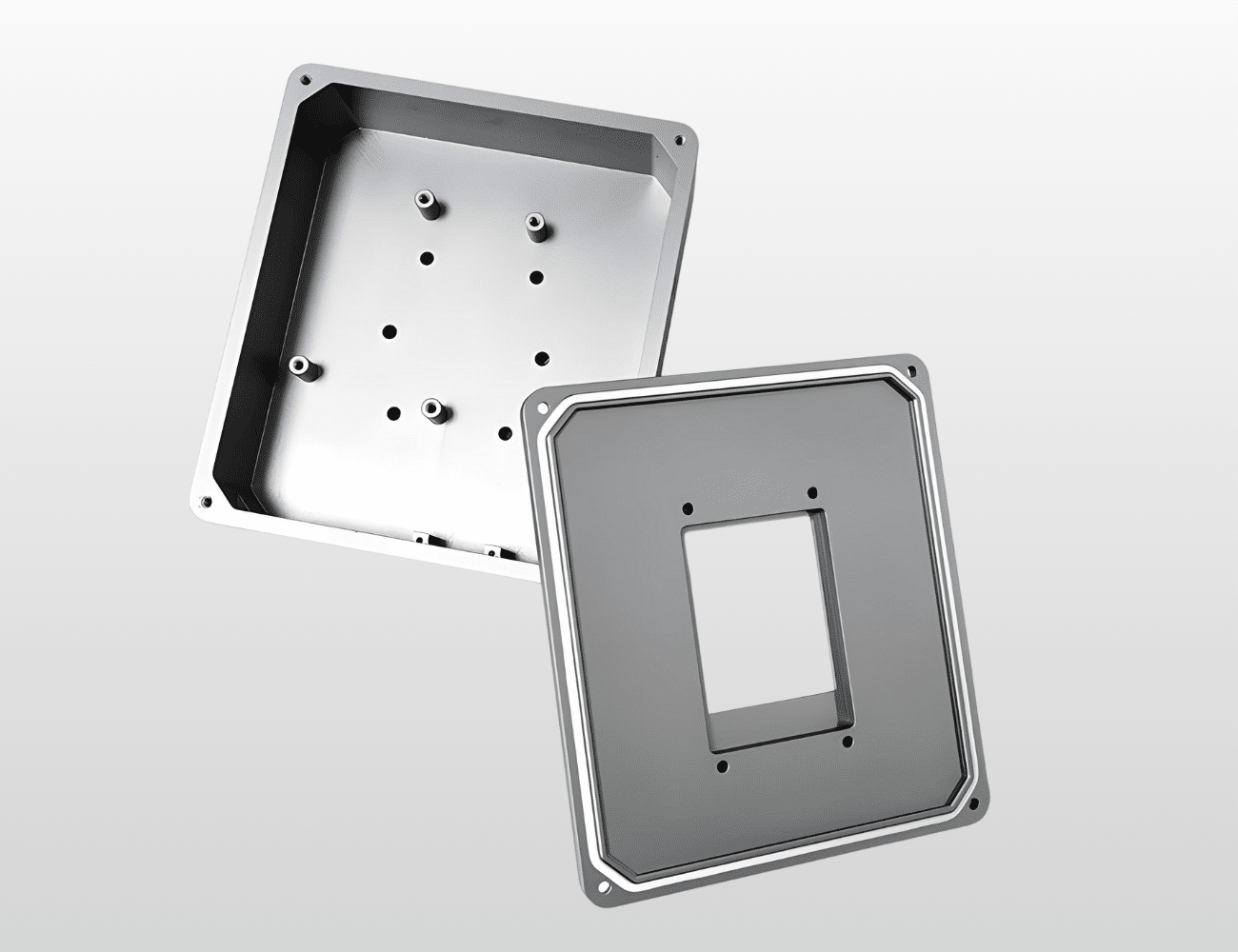

Battery Casings & Enclosures CNC Machining for Renewable Energy Industry

What are Battery Casings & Enclosures?

Battery casings and enclosures are engineered protective housings that contain battery cells, modules, or packs while providing structural support, thermal regulation, electrical isolation, and environmental sealing for energy storage systems. These enclosures function as the primary defense against physical impacts, water ingress, dust contamination, and thermal events, while facilitating heat transfer through integrated cooling features such as finned surfaces, liquid cooling channels, or phase-change material cavities. They are essential components in electric vehicle battery packs, residential and commercial energy storage systems, utility-scale battery installations, portable power stations, and marine renewable energy applications. The enclosure’s design directly influences battery safety, thermal performance, system weight, and overall energy density of the storage solution.

Key Technical Requirements

Battery casings CNC machining requires maintaining flatness tolerances of ±0.005″ on sealing surfaces to ensure gasket compression and IP67/IP68 ingress protection ratings, with concentricity within 0.003″ on port features for thermal management connections. Material specifications typically demand minimum tensile strengths of 42 ksi for aluminum 6061-T6 or 70 ksi for stainless steel 304, with thermal conductivity exceeding 160 W/m·K for aluminum to facilitate heat dissipation. Surface finish requirements range from 63 Ra on internal surfaces to 32 Ra or better on gasket seating areas and o-ring grooves. Enclosures must withstand impact forces per SAE J2464 crash testing standards, provide flame resistance meeting UL 94 V-0 ratings when required, and maintain structural integrity across temperature ranges from -40°C to 85°C. Wall thickness uniformity within ±0.010″ ensures consistent thermal performance, while threaded insert positioning tolerances of ±0.015″ enable reliable assembly with battery management systems and mounting hardware.

Manufacturing Challenges & Solutions

Producing battery enclosures presents significant challenges including machining thin-wall sections without distortion, creating complex internal geometries for cooling channels while maintaining pressure integrity, and achieving the precise flatness required for hermetic sealing across large surface areas. The combination of deep pocket milling for weight reduction and tight tolerance requirements on sealing surfaces demands careful process planning to minimize residual stresses. Battery casing manufacturing also faces difficulties in producing integrated features such as electrical feedthrough ports, thermal interface mounting points, and venting channels while maintaining leak-proof integrity.

Yicen Precision overcomes these challenges through strategic fixturing designs that support thin-wall sections during machining, preventing deflection-induced dimensional errors, while our adaptive toolpath programming minimizes cutting forces through optimized engagement angles and climb milling strategies. Our 5-axis machining centers enable single-setup production of complex enclosure geometries, eliminating alignment errors from multiple setups while reducing cycle times by 25-30%. Climate-controlled manufacturing environments maintain temperature stability within ±2°F, preventing thermal expansion variations during precision machining operations. Quality control protocols include helium leak testing to 1×10⁻⁶ mbar·L/s sensitivity, CMM verification of all sealing surface flatness and port locations, and optical profilometry confirming gasket groove dimensions. We employ stress-relief processes and controlled cooling cycles between roughing and finishing operations to achieve the dimensional stability critical for reliable sealing performance.

Applications & Use Cases

Battery casings and enclosures CNC machining serves critical applications across energy storage sectors:

• Residential Energy Storage: Compact enclosures for home battery systems (5-20 kWh capacity) with aesthetic finishes
• Commercial & Industrial ESS: Medium-format housings for 50-500 kWh installations with modular scalability
• Utility-Scale Battery Storage: Large-format enclosures for grid-connected systems (1+ MWh) with integrated fire suppression
• Electric Vehicle Integration: Structural battery pack enclosures with crashworthiness and thermal management features
• Portable Power Stations: Lightweight casings for mobile energy storage (0.5-5 kWh) with carry handles and protective bumpers
• Marine & Offshore Applications: Corrosion-resistant enclosures for saltwater environments and vessel power systems
• Microgrid Systems: Ruggedized enclosures for remote renewable energy installations with enhanced environmental protection

Why Choose Yicen Precision for Battery Casings & Enclosures?

Our specialized expertise in precision battery casing manufacturing combines advanced machining capabilities with deep understanding of energy storage thermal management and safety requirements. We maintain dedicated production capabilities for enclosure sizes ranging from compact portable units to utility-scale installations, with machining envelopes accommodating workpieces up to 8 feet in length. Fast turnaround times of 3-5 weeks for production quantities support aggressive product development cycles, while our rapid prototyping services deliver functional enclosures within 7-10 business days for design validation and thermal testing. Our engineering team provides comprehensive DFM consultation, optimizing enclosure designs for manufacturability while enhancing cooling efficiency through strategic fin geometry, internal ribbing, and thermal interface surfaces. We collaborate on lightweighting initiatives that reduce enclosure mass by 15-20% through topology optimization and strategic material removal while maintaining structural and thermal performance. Complete material traceability documentation accompanies every shipment, including mill certifications, leak test results, dimensional inspection reports, and surface treatment verification. We deliver cost-effective solutions through efficient nesting strategies that maximize raw material utilization, automated production processes that reduce labor content, and quality systems ensuring zero-defect hermetic sealing, providing the reliable protection your battery systems demand for safe, long-term operation in critical renewable energy applications.
