Energy Storage Connectors CNC Machining for Renewable Energy Industry

What are Energy Storage Connectors?

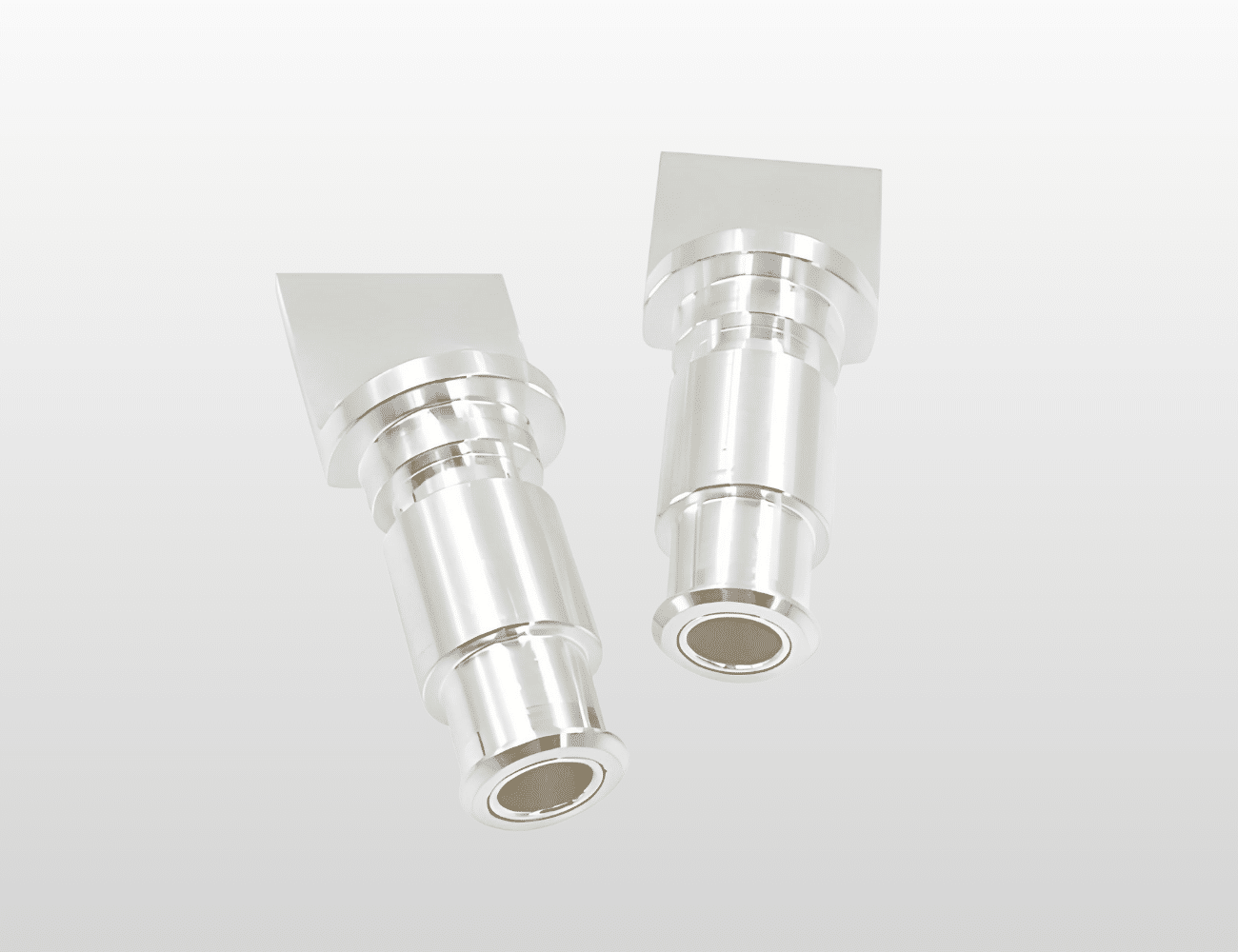

Energy storage connectors are engineered electrical components that establish and maintain conductive pathways between battery cells, modules, busbars, and power conversion equipment in energy storage systems, incorporating contact interfaces, mechanical retention features, and safety mechanisms. These connectors function as the critical junctions enabling series and parallel battery configurations while providing serviceable connections for maintenance, testing, and emergency isolation. They are essential in lithium-ion battery packs for residential and commercial installations (5-500 kWh), utility-scale battery energy storage systems (1+ MWh), electric vehicle fast charging stations, microgrid energy storage, backup power systems, and renewable energy integration applications. The connector’s electrical and mechanical performance directly influences system efficiency through contact resistance losses, reliability through connection integrity under vibration and thermal cycling, and safety through proper current interruption and arc suppression capabilities.

Key Technical Requirements

Energy storage connectors CNC machining requires maintaining contact surface flatness within ±0.001″ and surface finish of 32 Ra or better to minimize contact resistance and ensure current distribution uniformity across mating interfaces. Material specifications typically demand high-conductivity copper alloys with minimum 95% IACS (International Annealed Copper Standard) conductivity, or aluminum alloys exceeding 61% IACS for weight-sensitive applications. Contact resistance must remain below 50 microhms for high-current applications (200+ amps) with voltage drop less than 50 mV at rated current. Mechanical requirements include retention forces exceeding 50 lbf to prevent accidental disconnection under vibration, with insertion/extraction forces optimized between 15-40 lbf for manual serviceability. Thread specifications for bolted connections follow Class 2A/2B tolerances with thread engagement depths calculated per ASME B1.1 standards to prevent galling and ensure torque retention. Temperature rise limits typically specify maximum 30°C above ambient at rated continuous current, requiring thermal design optimization. Plating specifications often require silver plating (0.0002-0.0005″ thickness) or tin plating (0.0002-0.0003″ thickness) for enhanced contact conductivity and corrosion protection, applied per ASTM B700 and MIL-DTL-45204 standards.

Manufacturing Challenges & Solutions

Producing energy storage connectors presents significant challenges including achieving the tight tolerances and superior surface finishes required on contact surfaces while working with soft, gummy copper alloys that tend to produce built-up edge and poor surface quality. The combination of high-current-carrying requirements demanding substantial cross-sectional areas with compact packaging constraints requires complex geometries with thin-wall features and deep cavities. Energy storage connector manufacturing also faces difficulties in maintaining dimensional stability during plating operations, preventing galvanic corrosion between dissimilar materials in multi-metal assemblies, and achieving consistent thread quality for reliable bolted connections carrying high currents.

Yicen Precision overcomes these challenges through strategic tooling selection including PCD (polycrystalline diamond) and ultra-sharp carbide tools that produce superior surface finishes on copper alloys without built-up edge formation, achieving 16-32 Ra surface finishes that minimize contact resistance. Our machining strategies incorporate high-speed, low-force cutting parameters with optimized chip evacuation that prevent work hardening and dimensional distortion in soft copper materials. For complex connector geometries, our 5-axis machining centers enable single-setup production that eliminates alignment errors from multiple operations while reducing cycle times by 25-35%. We employ specialized thread milling and thread forming operations that produce Class 2A threads with superior strength and surface finish compared to conventional tapping, critical for bolted connections experiencing thermal cycling. Climate-controlled manufacturing environments maintain temperature stability within ±2°F, ensuring dimensional consistency during precision operations on thermally sensitive materials. Quality control protocols include four-wire Kelvin resistance measurement verifying contact resistance below specification limits, CMM verification of all critical dimensions including contact surface flatness and parallelism, mechanical pull testing validating retention forces, and optical inspection confirming surface finish quality. We coordinate with certified plating suppliers who provide controlled-thickness deposits with adhesion testing per ASTM B571, and incorporate post-plating dimensional verification to ensure plating buildup remains within tolerance envelopes.

Applications & Use Cases

Energy storage connectors CNC machining serves critical applications across battery and power storage systems:

• Residential Battery Systems: High-current connectors for lithium-ion home storage (10-20 kWh) with quick-disconnect safety features
• Commercial Energy Storage: Medium-voltage connectors for three-phase battery installations (50-500 kWh) with modular scalability
• Utility-Scale Battery Farms: Heavy-duty bus bar connectors for container-based systems (1+ MWh) handling 500-2000 amp continuous currents
• Electric Vehicle Charging: DC fast charge connectors and cable assemblies for 50-350 kW charging stations
• Microgrid Interconnects: Multi-pole connectors enabling battery system islanding and grid synchronization
• Telecommunications Backup: Compact high-reliability connectors for -48 VDC battery strings in critical infrastructure
• Marine & Offshore Energy: Corrosion-resistant connectors for wave energy storage and maritime battery applications

Why Choose Yicen Precision for Energy Storage Connectors?

Our specialized expertise in precision energy storage connector manufacturing combines advanced machining capabilities with comprehensive understanding of electrical contact physics, thermal management, and high-current applications. We maintain production capacity ranging from small-format cell-level connectors to large bus bar assemblies handling 2000+ amps, with Swiss turning capabilities for miniature precision connectors and heavy-duty machining centers for substantial power distribution components. Fast turnaround times of 2-4 weeks for production quantities support rapid product development and market introduction, while our rapid prototyping services deliver functional connectors within 5-7 business days for electrical testing, mechanical validation, and design iteration. Our engineering team provides comprehensive DFM consultation, optimizing connector geometries to minimize contact resistance through increased contact area and pressure distribution, reduce material costs through efficient nesting and material selection, and enhance thermal performance through strategic mass distribution and surface area optimization. We collaborate on material selection, balancing electrical conductivity requirements with mechanical strength needs, corrosion resistance, weight constraints, and total system costs. We provide integrated solutions including plating specification development, torque specification calculations based on joint analysis, and thermal modeling predicting temperature rise under various load profiles. Complete material traceability documentation accompanies every shipment, including mill certifications with conductivity data, dimensional inspection reports, contact resistance test results, mechanical pull test data, and plating thickness verification. We deliver cost-effective solutions through strategic copper procurement that reduces raw material costs by 12-18%, efficient machining strategies that minimize material waste and cycle times, and quality systems ensuring zero-defect contact performance—providing reliable electrical connections that minimize power losses, withstand demanding mechanical and thermal environments, and deliver decades of maintenance-free operation in critical energy storage applications from residential backup systems to utility-scale renewable energy integration installations.
