Alignment & Positioning Parts CNC Machining for Semiconductor Industry

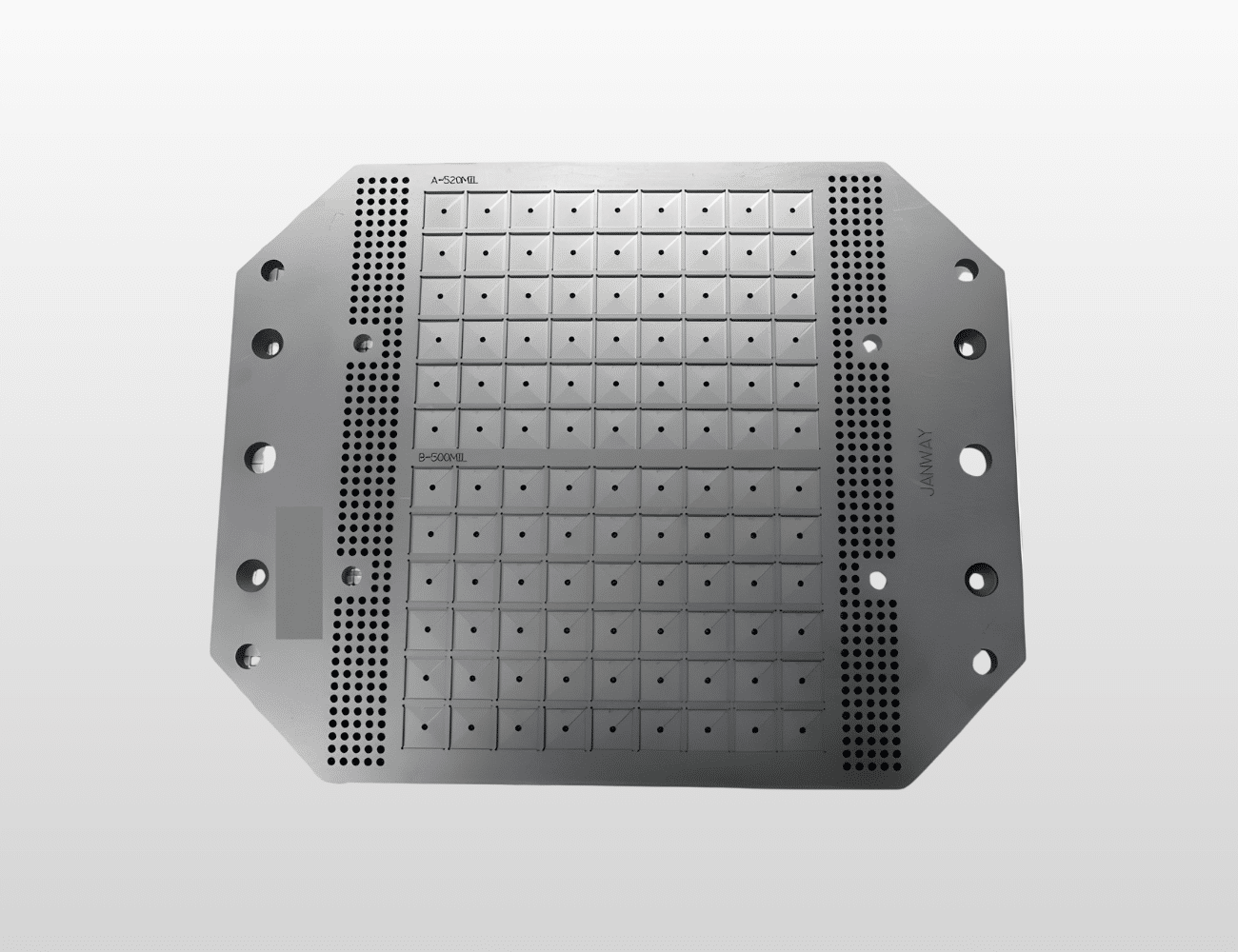

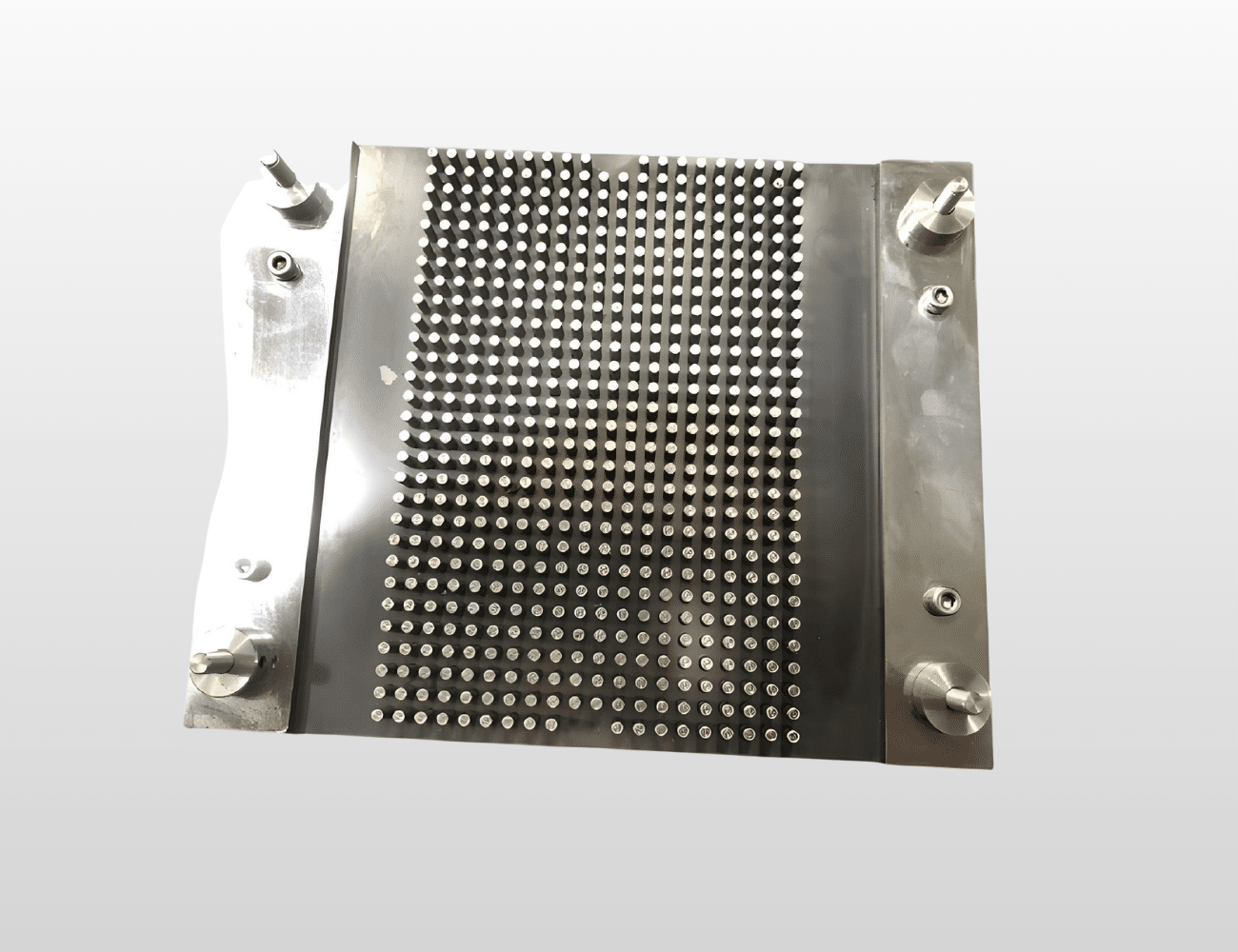

A. What are Alignment & Positioning Parts?

Alignment and positioning parts are precision-machined components designed to establish and maintain accurate spatial relationships between equipment elements, workpieces, and tooling in semiconductor manufacturing systems. These parts include precision dowel pins, alignment bushings, kinematic coupling spheres, registration blocks, positioning stages, datum pins, locating features, and reference surfaces that work together to achieve repeatable positioning with micron or sub-micron accuracy. Used extensively in photolithography steppers, wafer transfer robots, die bonders, inspection microscopes, and automated handling systems, alignment and positioning parts must deliver exceptional dimensional accuracy, geometric tolerances, and long-term stability to ensure consistent equipment performance where even nanometer-level positioning errors can impact product yield and quality.

B. Key Technical Requirements

Alignment and positioning parts for semiconductor applications demand extraordinary precision and durability. Positional tolerances of ±0.0001″ to ±0.00005″ are required for critical locating features to achieve repeatable positioning accuracy. Geometric tolerances including concentricity within 0.0001″ TIR, perpendicularity within 0.00005″ per inch, and cylindricity within 0.0002″ ensure proper mating and alignment function.

Material specifications must provide dimensional stability under environmental variations, adequate hardness for wear resistance (typically 58-62 HRC for steel pins and bushings), and appropriate surface properties for sliding or contact applications. Coefficient of thermal expansion considerations prevent positioning drift during temperature fluctuations in cleanroom environments.

Surface finish requirements range from Ra 8-16 microinches for general surfaces to Ra 2-4 microinches for precision contact points and bearing surfaces. Thread specifications for adjustment mechanisms require precise pitch diameter and lead accuracy. Parallelism between opposing surfaces within 0.0001″ maintains proper seating and load distribution. Corrosion resistance through material selection or surface treatments ensures long-term dimensional stability. Non-magnetic materials may be specified for applications near magnetic fields or electron beam systems.

C. Manufacturing Challenges & Solutions

Manufacturing alignment and positioning parts presents significant challenges including achieving sub-micron dimensional tolerances on small features, maintaining tight geometric relationships between multiple surfaces and features, and preventing distortion during heat treatment of hardened components. Material hardness after hardening complicates finish grinding operations. Thin or delicate features require specialized fixturing to prevent deflection or damage during precision grinding.

Yicen Precision overcomes these challenges through strategic precision grinding operations including cylindrical grinding, surface grinding, and jig grinding for critical dimensions after heat treatment. Our CNC grinding capabilities with sub-micron resolution enable tight tolerance achievement on hardened materials. Temperature-controlled manufacturing and grinding environments prevent thermal expansion during precision operations.

We employ proven heat treatment sequences with cryogenic treatment when specified, followed by stress-relief tempering to maximize dimensional stability. Precision lapping processes achieve flatness and parallelism specifications on reference surfaces. Wire EDM produces complex geometries while maintaining geometric accuracy. Our comprehensive quality control includes CMM inspection with laser scanning for complex geometries, optical comparators for small feature verification, and gauge block calibration for dimensional standards. Coordinate measurement with sub-micron repeatability documents conformance to exacting alignment part specifications. Statistical process control ensures consistent quality across production batches.

D. Applications & Use Cases

Precision alignment and positioning parts manufactured by Yicen Precision serve critical roles across semiconductor equipment applications:

• Lithography Steppers – Wafer stage alignment pins and kinematic mounting components
• Wafer Handling Robots – End effector positioning features and datum references
• Die Bonding Equipment – Precision pick-and-place alignment systems and substrate positioning
• Wire Bonding Machines – Workpiece alignment fixtures and positioning stages
• Inspection & Metrology Systems – Kinematic mounts and repeatable positioning platforms
• Wafer Cassette Systems – Precision registration pins and alignment features
• Load Lock Chambers – Wafer positioning guides and transfer alignment components

E. Why Choose Yicen Precision for Alignment & Positioning Parts?

Yicen Precision delivers unmatched expertise in precision mechanical components for semiconductor equipment manufacturing. Our engineering team understands the critical importance of geometric accuracy and long-term dimensional stability in alignment systems. We provide comprehensive DFM consultation to optimize alignment part designs for manufacturability, heat treatment stability, and assembly efficiency while meeting stringent positioning accuracy requirements.

Our rapid prototyping capabilities support equipment development with quick-turn production typically within 1-2 weeks for evaluation components. Scalability to full production volumes ensures consistent quality from prototype through high-volume equipment manufacturing. Complete material traceability, heat treatment certifications, and dimensional inspection reports meet semiconductor industry quality standards and support equipment qualification processes.

Cost-effective solutions result from optimized grinding strategies, strategic material selection balancing performance with manufacturability, and design refinement without compromising the sub-micron accuracy and geometric control demanded by precision positioning applications. Our gauge and fixture calibration services maintain ongoing accuracy standards. Whether you need standard precision dowel pins or custom kinematic coupling assemblies, Yicen Precision delivers the mechanical foundation for equipment precision. Request a technical consultation to discuss your specific alignment and positioning part requirements.
