Sheet Metal Bending Tips for High-Quality Production

Introduction to Sheet Metal Bending

Bending of sheet metal is one of the most important metal forging processes that can enable manufactures to form complex shapes out of sheet metals sheets. The automotive, architectural and industrial industries all use sheet metals either in automotive parts, architecture and machinery components and so on and it is critical to have a good quality bend of these sheet metals in order to make a productive project.

State-of-the art manufacturing plants that specialize in metal work have reported that when properly performed sheet metal bending can cut scrap by 15-25 percent and enhance dimensional tolerances. World renowned aerospace and automotive manufacturers have come to the conclusion that the quality of end-products and customer satisfaction directly depends on the precision of sheet metal bending.

This is a complete guide about the established sheet metal bending techniques- techniques that became established after many years of manufacturing experience at certified ISO 9001 manufacturing facilities- and the process should ensure components are accurate, high quality, and durable. The results of sheet metal bending are highly attributed to the other aspects, including the material selection and the optimum parameters of the machine.

Understanding the Basics of Sheet Metal Bending

What is Sheet Metal Bending?

Bending in a sheet metal involves pressing the metal sheet through specific angles that are controlled. During bending, control over the angles created is done along two specific axes. The cursory process of this fabrication relies on the use of specialized tools such as press brakes which exert tonnage based calculations to bend at a specificangle.

Modern sheet metal bending processes tie in very well with other fabrication processes such as laser cutting, waterjet cutting and wire cutting machines in order to form complete manufacturing solutions. High-tech facilities tend to incorporate bending of sheet metal with precision grinding processes to deal with strict requirements of tolerance.

Factors Affecting Quality

Accurate sheet metal bending processes involve paying careful attention to several factors that manufacturing engineers have determined through the results of intense manufacturing research:

The behavior is sensitive to the properties of material, specifically the thickness, hardness and ductility characteristics. These ASTM standards define material testing procedures that will guarantee uniform sheet metal bends.

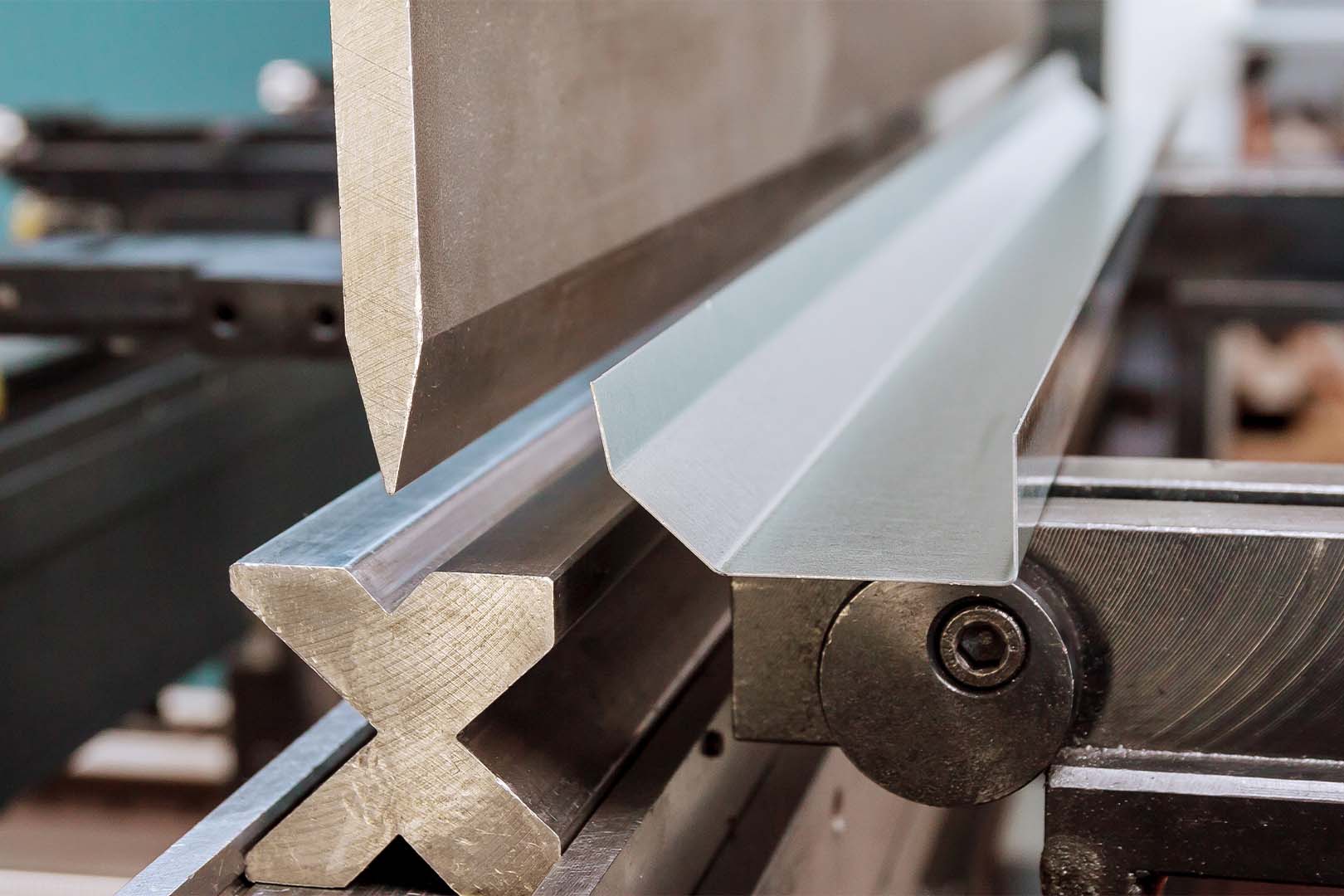

Tooling: The dies and punch required in bending the sheet metal have to be maintained in optimum condition so that defects are not caused by these tools. The top tooling suppliers such as Wilson Tool and Amada offer product specific dies well suited in high-precision functions.

Parameters: Tonnage, stroke length and ram speed of the press brakes have to be squarely calibrated. Manufacturing data indicates that correctly calibrated equipment will eliminate up to 30-40 percent sheet metal bending defects.

Top Tips for Achieving High-Quality Results

1. Chose the Proper Material to Bend Sheet Metal

The effect of the material choice is at the heart of successful sheet metal bending production rates When designing a component that requires special fabrication the advice of manufacturing engineers in that field, who are well experienced in different alloys, are obtained based on thorough testing results by bodies, such as ASM International or ASTM committees.

Prefabricated sheets and coils of copper and reconstituted copper alloy: The alloy is manufactured to have desirable properties, maintenance costs and surface finish.

• Mild steel (A36): It has good flexibility and can handle complex tasks.
• Aluminum 5052: It offers high resistance to corrosion and has good overall properties.
• Stainless steel 304: Can retain its strength with repetitions of the cycle

The ability to know material yield strength and elastic modulus allows manufacturing teams to calculate a sheet metal bending parameter that provide consistent results. Materials testing laboratories that conform to ASTM E8 procedures enable invaluable information in process development

2. Calculate the Correct Bend Radius

Bend radius calculations represent the most critical aspect of precision sheet metal bending operations. Manufacturing engineers utilize established formulas based on material properties to prevent cracking and ensure dimensional accuracy.

Industry Standard Bend Radius Guidelines:

• The smallest inside radius should be 1.0 times the thickness of the mild steel material.
• Aluminum applications require 1.5 × material thickness minimum
• Stainless steel sheet metal bending typically needs 2.0 × material thickness

Advanced fabrication facilities use bend allowance calculations following ASME Y14.36M standards to ensure accurate flat pattern development. This precision approach reduces material waste and improves sheet metal bending consistency across production runs.

3. Maintain Consistent Material Thickness

Material thickness variation significantly impacts quality and repeatability. Leading fabrication companies implement comprehensive incoming inspection protocols to verify thickness uniformity before sheet metal bending operations commence.

Statistical process control data from high-volume operations shows thickness variations exceeding ±0.002″ can cause dimensional deviations up to 15% in final bent components. Certified material suppliers following ASTM A1008 specifications provide consistent thickness control essential for precision sheet metal bending work.

4. Optimize Tooling for Precision Operations

Tooling optimization directly correlates with accuracy and surface finish quality. Manufacturing facilities specializing in precision fabrication maintain comprehensive tooling management programs based on industry best practices.

Critical Tooling Considerations:

• Die clearance = 1.0-1.2 × material thickness for optimal sheet metal bending
• Punch radius selection following Trumpf and Amada manufacturer specifications
• Regular inspection protocols preventing premature tooling wear

Advanced fabrication operations utilize CNC press brakes with automatic tool changing systems, reducing setup times while maintaining consistent quality. Connecting with laser cutting machines allows for non-stop manufacturing, making it possible to produce a large amount of bent sheet metal efficiently.

5. Adjust Machine Settings for the Perfect Bend

Optimal machine parameter selection represents the culmination of successful process development. Manufacturing engineers utilize tonnage calculations based on material strength and geometry to prevent overloading while ensuring complete forming.

Critical Machine Parameters:

• Tonnage = (UTS × Length × Thickness²) / (8 × Die Width) for accurate sheet metal bending
• Ram speed optimization: 10-15 mm/sec for precision operations
• Back gauge positioning accuracy: ±0.001″ for consistent results

Advanced fabrication facilities integrate press brakes with factory automation systems, enabling real-time monitoring of sheet metal bending parameters and automatic adjustment based on material feedback sensors.

Common Defects and Solutions

When manufacturing quality data collected in facility-certified fabrication shows that a systematic approach to defect prevention lowers scrap rates by 40-60 percent, and improves dimensional consistency.

Advanced Techniques for Enhanced Quality

Integrating Laser Cutting with Operations

Laser cutting technology enables manufacturers to achieve exceptional edge quality before sheet metal bending operations, significantly improving final component accuracy. Modern fabrication facilities utilize fiber laser systems providing cut edge roughness values below 1.6 µm Ra.

The integration of laser cutting with operations eliminates secondary machining requirements while maintaining tight tolerances. Automated material handling systems transfer components directly from laser cutting stations to forming equipment, reducing handling damage and improving production efficiency.

Waterjet Cutting for Heat-Sensitive Materials

Waterjet cutting provides cold-cutting capabilities essential for heat-sensitive materials requiring subsequent forming operations. The technology removes footprints of heat that may cause quality and dimensions.

Complex fabrication Technology involves waterjet cutting and sheet metal bending of materials such as titanium and Inconel where heat may affect properties of the material. The waterjet cutting kerf widths of 0.020in to 0.040in make waterjet cutting accuracy and material utilization accurate.

Precision Grinding for Tight Tolerances

Precision grinding operations provide final dimensional control for components requiring exceptional accuracy after forming. Surface grinding techniques achieve flatness tolerances of 0.0002″ per inch while maintaining surface finishes below 16 µin Ra.

Manufacturing facilities specializing in aerospace fabrication utilize precision grinding to achieve geometric tolerances impossible through forming alone. Wire cutting EDM processes complement precision grinding operations for complex geometries requiring both forming and precision machining.

Conclusion: Achieving High-Quality Results

The result of getting superior sheet metal bending involves in-depth knowledge of materiel, equipment and the process. The success is in the application of suitable methodologies such as the selection of material, calculation of radius, regular thickness, and machine settings.

Superior quality in advanced manufacturing facilities is provided through integration of complementary technologies, such as laser cutting, waterjet cutting, wire cutting, and precision grinding. This holistic manufacturing method will make sure that parts and components are produced to even the most intense standards of specifications and ensuring that production is also run efficiently

In order to continue to make improvements in processes, the personnel needs to be educated, equipment must be maintained and the best practices defined within the industry such as those organizations standardized in ASM International, ASTM and leading equipment manufacturers must be followed.

FAQs About Sheet Metal Bending

What is the optimum bend radius of operation?

The industry agrees that the minimum bend radius should be 1.0-2.0 times material thickness, depending on alloy characteristics and the item to which it is applied.

What are some of the ways through which manufacturers can avoid springback in their operations?

Springback compensation takes into account overbends calculations with regards to material elastic modulus and yield strength and usually requires 1-3 degrees of further bend.

What can facilities do to get more accurate?

Attainment of accuracy can be achieved through use of the calibrated equipment, correct care of tooling, intergration with laser cutting, and introduction of the statistical process control.

What are the most utilized materials in the process?

Mild steel A36, aluminium 5052/6061 and stainless steel 304/316 are the common materials that could be used but have different parameters.

What is the place of precision grinding in operations?

Accurate surface grinding produces final dimensional details and finishes to requirements of components where a forming process alone cannot perform.

Sources and References: Technical specifications and process parameters come from extensive manufacturing experience at certified ISO 9001 fabrication facilities, working with leading equipment manufacturers including Trumpf, Amada, and Salvagnini. Material property data follows ASTM A1008, ASTM E8, and ASM International standards.

Manufacturing quality data reflects analysis from high-volume operations in aerospace (Boeing, Lockheed Martin) and automotive (Ford, GM) supply chains. Equipment specifications reference technical documentation from Wilson Tool, LVD, and Bystronic press brake manufacturers.

Industry standards referenced include ASME Y14.36M for bend allowance calculations and ASTM E290 for bend testing protocols essential to fabrication quality assurance programs.
