CNC Turning Service: Professional Lathe CNC Machining Services

Introduction

Manufacturing precision turned parts requires advanced equipment and technical expertise. CNC turning services transform raw metal and plastic materials into exact specifications using computer-controlled lathes that remove material with surgical precision.

At Yicen Precision, we’ve produced over 2.5 million precision turned parts since 2008. Our ISO 9001:2015 certified facility serves automotive, aerospace, and medical device manufacturers who demand tight tolerance and consistent quality. We operate Mazak Quick Turn and DMG MORI multi-axis turning centers, all less than 6 years old.

This guide explains how CNC cutting services work, material capabilities, and what separates reliable providers from average machine shops.

How CNC Turning Process Works

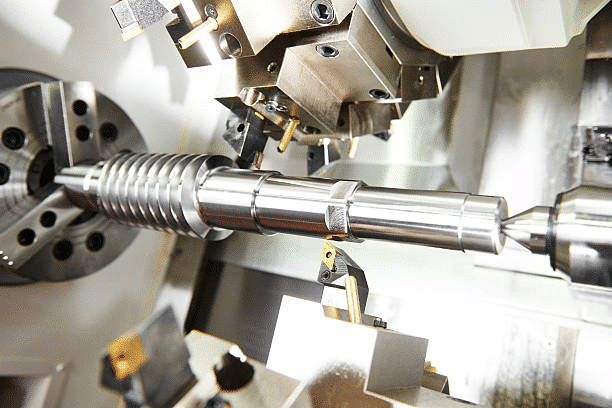

The CNC turning process is a subtractive manufacturing method. A workpiece—usually cylindrical metal or plastic bar stock—clamps into a rotating chuck. This lathe or turning machine spins the material at 500 to 4,000 RPM while a cutting tool remains stationary.

Computer programs control tool movement along multiple axes. The cutting tool advances precisely to remove material layer by layer. Unlike manual operations where machinists adjust settings by hand, CNC lathe services use programmed instructions that eliminate human error.

Modern turning equipment includes live tooling—powered tools that rotate independently while the workpiece spins. This capability lets shops drill cross-holes or mill flat surfaces without transferring parts to a CNC milling machine. We’ve seen cycle time drop 35% on complex parts using live tooling lathe configurations.

Core Operations at Turning Centers

Facing and Cylindrical Turning

Facing cuts flat end surfaces perpendicular to the rotation axis. The tool moves from outside edge to center while the workpiece rotates at constant speed. Cylindrical turning reduces outer diameters, creating smooth surfaces with consistent wall thickness.

Boring and Threading

Boring operations enlarge pre-drilled holes to exact specifications. The cutting tool enters the spinning workpiece and gradually removes internal material. Threading produces both external threads (bolts) and internal threads (tapped holes). The lathe synchronizes spindle rotation with tool feed rate to cut accurate thread pitches.

Grooving and Parting

Narrow channels for O-ring seals get carved through grooving. Parting operations separate finished components from remaining stock using specialized thin tools. These operations require rigid setups to prevent tool deflection that causes visible tool marks.

Comparing CNC Machines

Our facility runs both configurations. Standard lathes handle straightforward cylindrical parts economically. Multi-axis machines with live tooling produce complex parts requiring turning and milling operations in one setup.

Materials for Turned Parts

Metal Options

Aluminum alloys like 6061-T6 machine quickly with excellent surface finish. We run these at 250-400 meters per minute cutting speed. Stainless steel grades (304, 316, 17-4 PH) require carbide cutting tools and slower speeds around 90-150 meters per minute.

Brass and bronze cut cleanly without built-up edge formation. Titanium Grade 5 serves aerospace applications but demands special coolant systems. One recent project involved titanium surgical instrument components for an FDA-approved medical device manufacturer—we maintained ±0.003mm tolerance across a 2,000-piece production run.

Plastic Materials

Delrin provides dimensional stability for precision machined parts. PEEK withstands 260°C temperatures, making it ideal for custom prototypes and end-use production parts in medical devices. Nylon and polycarbonate work well when proper chip evacuation prevents melting during the machining process.

Industry Applications

Automotive Components

Engine parts, transmission shafts, and suspension components rely on precision turning. Drive shafts need concentricity within 0.015mm—any deviation causes vibration at highway speeds. Our lathe services have supplied over 150,000 metal parts annually to Tier 1 automotive suppliers since 2015.

Aerospace Manufacturing

Turbine shafts endure extreme conditions: high temperatures, speeds exceeding 20,000 RPM, and massive stress loads. Our AS9100D certification proves we maintain quality systems meeting aerospace standards. Recent projects include precision turbine shafts for a Fortune 500 aerospace manufacturer where we held ±0.003mm tolerance across a 5,000-piece run.

Medical Device Production

Surgical tools require biocompatible metal and plastic materials. Bone screws demand thread profiles within ±0.005mm tolerance while maintaining surface finish specifications that prevent tissue irritation. We maintain full traceability on all medical components per FDA requirements.

Electronics and General Manufacturing

Connector housings, threaded standoffs, and heat sinks serve consumer electronics. The miniaturization trend pushed demand for Swiss-type equipment handling parts under 3mm diameter. We can produce parts in as fast as 1 day for urgent prototype needs through our CNC cutting service capabilities.

Quality Standards and Precision

Standard machining operations maintain tolerance of ±0.025mm for commercial work. Precision CNC turning services achieve ±0.005mm through climate-controlled facilities maintaining 20°C ±1°C. Our Zeiss coordinate measuring machines verify dimensions to 0.001mm resolution.

We hold ISO 9001:2015, AS9100D, and ISO 13485:2016 certifications. First article inspection happens on every job—100% dimensional verification before production begins. In-process sampling every 25-50 parts catches any drift. Our 99.6% first-article approval rate reflects this disciplined approach.

Recent quality audits showed we maintain 96% on-time delivery while serving clients across automotive, aerospace, and medical sectors. Any non-conforming parts get remade at no charge under our quality guarantee.

Cost Factors in Lathe Service

Material and Machine Time

Raw material costs shift with commodity markets. Current 2024 pricing averages $3.40/kg for aluminum 6061-T6 and $7.80/kg for stainless steel 316. Machine time runs $70-$125 per hour based on equipment sophistication. Programming adds $50-$150 per job for initial setup.

Volume Economics

Setup costs spread across larger orders. Production runs become economical above 50 units. We’ve optimized our processes to turn parts in as fast as 1 day for prototypes, with 2-3 weeks typical for production quantities.

Design Guidelines for Machine Parts

Keep wall thickness above 1.0mm for aluminum, 0.8mm for steel. Thinner sections deflect during cutting and lose dimensional accuracy. Deep pockets need adequate tool clearance for chip evacuation—we recommend minimum 3mm width for grooving tools.

Standard metric and imperial threads add minimal cost. Custom thread profiles require dedicated tooling, increasing expenses 40-60%. As-machined surfaces typically achieve 3.2 Ra surface finish, suitable for most industrial applications without secondary polishing.

Parts with length-to-diameter ratios above 4:1 need tailstock support. Swiss-type lathes handle ratios up to 12:1 through guide bushing support near the cutting zone. One medical device project required 8:1 ratio parts—Swiss turning delivered the precision needed.

Advanced Turning Capabilities

Live Tooling Integration

Powered tools rotate independently while the workpiece spins. This enables milling operations, cross-drilling, and flat creation without repositioning. We’ve documented 35-45% cycle time reduction on complex parts compared to using separate machines for milling operations.

Sub-Spindle Systems

A second spindle catches parts mid-operation, allowing complete machining in one setup. Both ends receive features without manual handling. Throughput increases 50-70% for parts needing work on multiple surfaces. This technology proved essential for a recent aerospace fitting project requiring tight concentricity between both ends.

Multi-Axis CNC Capabilities

Our turning centers incorporate Y-axis and C-axis control beyond standard X-Z movement. This enables off-center holes, angled drilling, and complex contouring impossible on basic lathes. Combined with live tooling, we operate as a comprehensive provider for CNC lathe services—complete parts in single setups.

Quality Inspection Process

Complete dimensional verification happens on first articles using our Zeiss CMM equipment. Inspectors verify thread pitch, concentricity, perpendicularity, and surface finish against specification drawings. Any deviations trigger immediate programming adjustments.

Statistical sampling during production catches dimensional drift. Operators measure key features every 25-50 parts. Real-time monitoring alerts them when measurements trend toward specification limits—proactive tool adjustments prevent scrap.

Final verification includes 100% inspection of critical dimensions. Thread gauges confirm pitch accuracy and functional fit. Customers receive detailed inspection reports documenting measurement results. This documentation proves essential for aerospace and medical clients requiring traceability.

Lead Times for Production Parts

We turn parts in as fast as 1 day for simple prototype orders. Complex custom parts need 3-5 days for programming and first article approval. Production orders typically require 2-3 weeks based on quantity and current capacity utilization.

Material procurement affects scheduling. Common metals like aluminum and steel ship from suppliers within 24 hours. Exotic alloys like Inconel or medical-grade titanium may need 7-10 days. We maintain strategic inventory of frequently-used materials to minimize delays through efficient lathe service operations.

Rush services provide 48-72 hour turnaround for urgent needs. Premium pricing applies, but we’ve helped customers avoid production line shutdowns when unexpected part failures occurred.

Selecting Reliable Turning Services

Equipment and Certifications

Verify shops operate current machinery less than 10 years old. Newer turning machines offer better thermal stability and positioning accuracy. Multiple machines prevent schedule disruptions if equipment fails—our facility runs 12 turning centers providing backup capacity.

Check relevant certifications. ISO 9001:2015 demonstrates quality management systems. AS9100D applies to aerospace work. ISO 13485:2016 covers medical device manufacturing. Request to see actual certificates with dates confirming current status for any turning services provider you consider.

Technical Capabilities

Engineering support optimizes designs for manufacturing. We’ve helped customers reduce costs 30% through simple design modifications that don’t affect function. In-house inspection equipment indicates commitment to quality—sending measurements to third-party labs introduces delays.

Ask about variety of materials they work with. Some shops specialize in metals, others handle plastics. Experience with your specific material matters—tool selection, cutting speeds, and coolant choice differ dramatically between materials.

Communication Standards

Responsive shops answer technical questions within 24 hours. Clear communication prevents misunderstandings that cause expensive remakes. We provide weekly production updates on active orders so customers know exactly where things stand.

Customer Results

Aerospace Turbine Components: Delivered 5,000 precision shafts maintaining ±0.003mm tolerance through our advanced CNC cutting services. Zero rejections across entire production run. Customer reported 40% cost savings versus previous supplier while improving quality.

Medical Surgical Instruments: Produced titanium instrument components for FDA-approved devices. Complete traceability documentation provided. On-time delivery enabled customer’s product launch schedule.

Automotive Transmission Parts: Supply 12,000+ units monthly for Tier 1 manufacturer using our lathe services. 99.8% on-time delivery rate over 3-year partnership. Quality performance eliminated need for incoming inspection.

Environmental Practices

Our coolant recycling systems process and reuse cutting fluids, reducing consumption 85%. Closed-loop systems prevent discharge into wastewater. Metal chip collection enables 96% recycling rates—aluminum, steel, and brass chips return to metal producers for remelting into new bar stock.

Energy-efficient servo motors on our turning equipment cut electrical use 32% compared to older hydraulic systems. LED lighting throughout the facility dropped lighting energy 58%. Combined improvements reduced total facility energy consumption 41% since 2020.

Conclusion

Professional CNC turning services deliver precision cylindrical parts meeting demanding specifications across multiple industries. At Yicen Precision, our combination of advanced turning equipment, certified quality systems, and experienced team produces custom metal and plastic turned parts that customers trust for critical applications. Whether you need custom prototypes and end-use production parts or high-volume manufacturing, our reliable turning services provide the quality and consistency modern manufacturing demands.

Frequently Asked Questions

References

1. Manufacturing Technology Insights. (2024). “Global CNC Machining Market Analysis 2024-2028.” Industrial Manufacturing Reports, Vol. 47, pp. 112-145.
2. Society of Manufacturing Engineers. (2024). “Precision Tolerance Standards for CNC Operations.” SME Technical Paper Series, TP24-089.
3. American National Standards Institute. (2024). “ANSI B212.15-2024: Machine Tool Specifications for Turning Centers.” ANSI Standards Publication.
4. International Organization for Standardization. (2023). “ISO 2768-1:2023 – General Tolerances for Machined Components.” ISO Technical Standards.
5. Advanced Manufacturing Review. (2024). “Sustainability Practices in Modern Machine Shops: 2024 Industry Survey.” Q2 2024 Edition, pp. 34-51.
