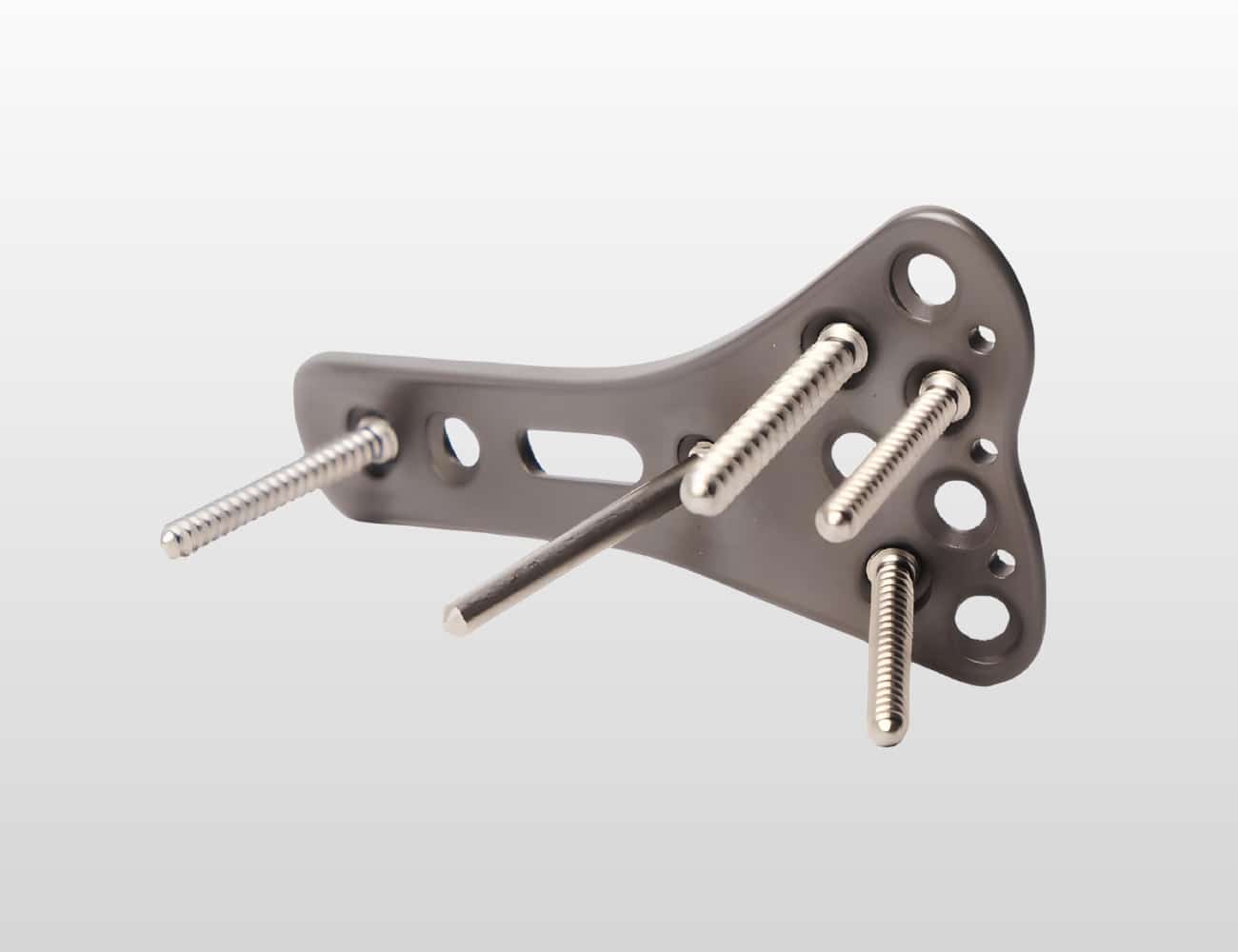

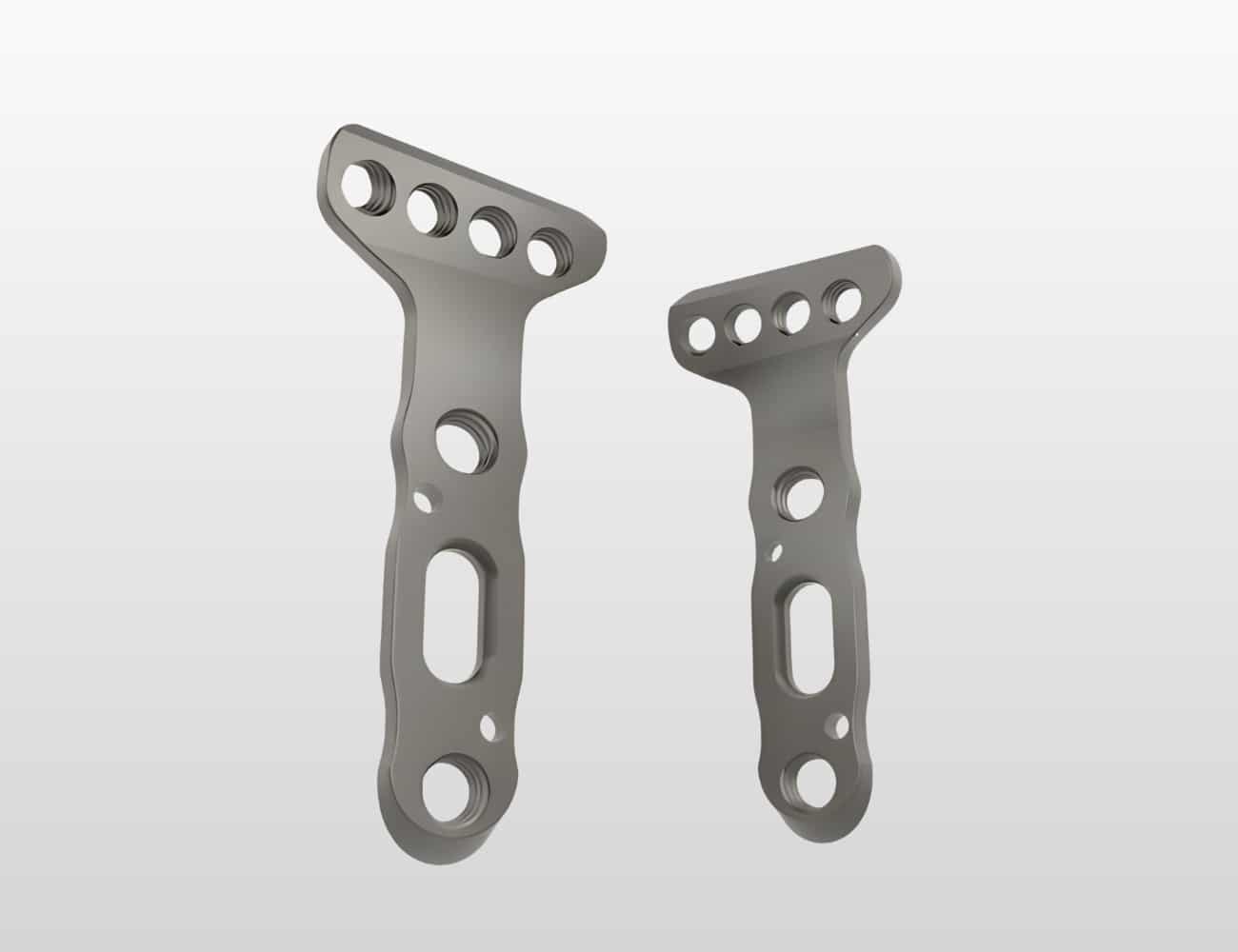

Orthopedic Components CNC Machining for Medical Devices Industry

Yicen Precision provides comprehensive regulatory documentation including Certificate of Conformance with full dimensional inspection data, material certifications with heat/lot traceability to mill test reports, biocompatibility certificates (ISO 10993 testing), mechanical property verification (tensile strength, yield strength, elongation), process validation documentation demonstrating manufacturing consistency, and non-destructive testing reports (FPI, X-ray). We support Design History File (DHF) requirements, provide supplier qualification packages, and maintain Device Master Records (DMR). Our ISO 13485 quality system supports FDA 510(k), PMA submissions, and international regulatory pathways (EU MDR, Health Canada, PMDA).


Surface quality is critical for orthopedic component performance. For bearing surfaces in hip and knee implants, we achieve Ra 4-8 microinch finishes using precision grinding and polishing to minimize polyethylene wear debris. For bone-contacting surfaces promoting osseointegration, we create controlled roughness (Ra 100-200 microinch) through grit blasting or specialized machining. We coordinate plasma spray coating (50-200 micron thickness) for porous surfaces enabling biological fixation. Surface quality is verified using profilometry, visual inspection under magnification, and adhesion testing for coatings. All surface preparation follows validated processes with documented parameters.


We specialize in certified biocompatible materials specifically approved for orthopedic implants. Ti-6Al-4V ELI (Grade 23 titanium per ASTM F136) is our primary material for hip stems, knee components, and spinal hardware due to excellent osseointegration and fatigue strength. Cobalt-chromium-molybdenum (ASTM F75, F1537) provides superior wear resistance for bearing surfaces in hip and knee joints. 316LVM stainless steel (ASTM F138) serves trauma fixation applications. PEEK polymers offer radiolucency for spinal cages. All materials include complete biocompatibility certifications (ISO 10993), material test reports, and chemical composition verification required for FDA submissions.


Orthopedic components demand exceptional precision with tolerances of ±0.0002″ to ±0.0005″ on critical features including modular tapers, bearing surfaces, and anatomical contours. Morse taper connections require ±0.0001″ for proper mating and load transfer. Thread tolerances must meet Class 3A specifications for locking screws and pedicle screws. Angular tolerances of ±0.5° ensure proper anatomical alignment and joint kinematics. Our temperature-controlled manufacturing, precision 5-axis CNC machines, and validated measurement procedures consistently achieve these demanding tolerances across production batches, ensuring proper implant function and long-term clinical performance.
