SLS

Selective Laser Sintering (SLS) is an advanced 3D printing technique that has transformed the manufacturing industry. It utilizes a high-powered laser to fuse powdered materials layer by layer, forming solid parts. Behind this cutting-edge technology, several advanced techniques are employed to ensure precision and functionality.

Laser Technology

The core of the SLS process is the laser itself. A high-powered laser, typically CO2, precisely scans the surface of the powder bed, fusing particles together according to the digital design. This ensures that parts are created with a high degree of accuracy, and the final product exhibits outstanding strength and durability.

Powder Bed Fusion

A thin layer of powder is uniformly spread over the print bed, and the laser fuses the powder in precise patterns to create a solid layer. The powder bed helps in supporting the structure during the printing process, which eliminates the need for additional support structures commonly required in other 3D printing methods like SLA (Stereolithography) or FDM (Fused Deposition Modeling).

Material Variety

SLS can work with a wide range of materials, but the most common ones are thermoplastics such as Nylon, Polyamide, and their various composites. These materials are known for their excellent mechanical properties, including toughness, heat resistance, and chemical stability. Materials like Glass-filled Nylon or Carbon Fiber composites can be used for enhanced strength and rigidity.

Advanced Powder Management

Powder recycling is another key aspect of the SLS process. Excess powder from previous prints can be reused, reducing waste and lowering material costs. Some advanced SLS machines incorporate powder sieving systems to ensure that the reused powder is of high quality, with minimal degradation from previous builds.

What Are The Challenges in Selective Laser Sintering (SLS)?

Despite its numerous advantages, SLS is not without its challenges. Manufacturers must overcome several hurdles to maximize the potential of SLS technology.

Surface Finish and Post-Processing

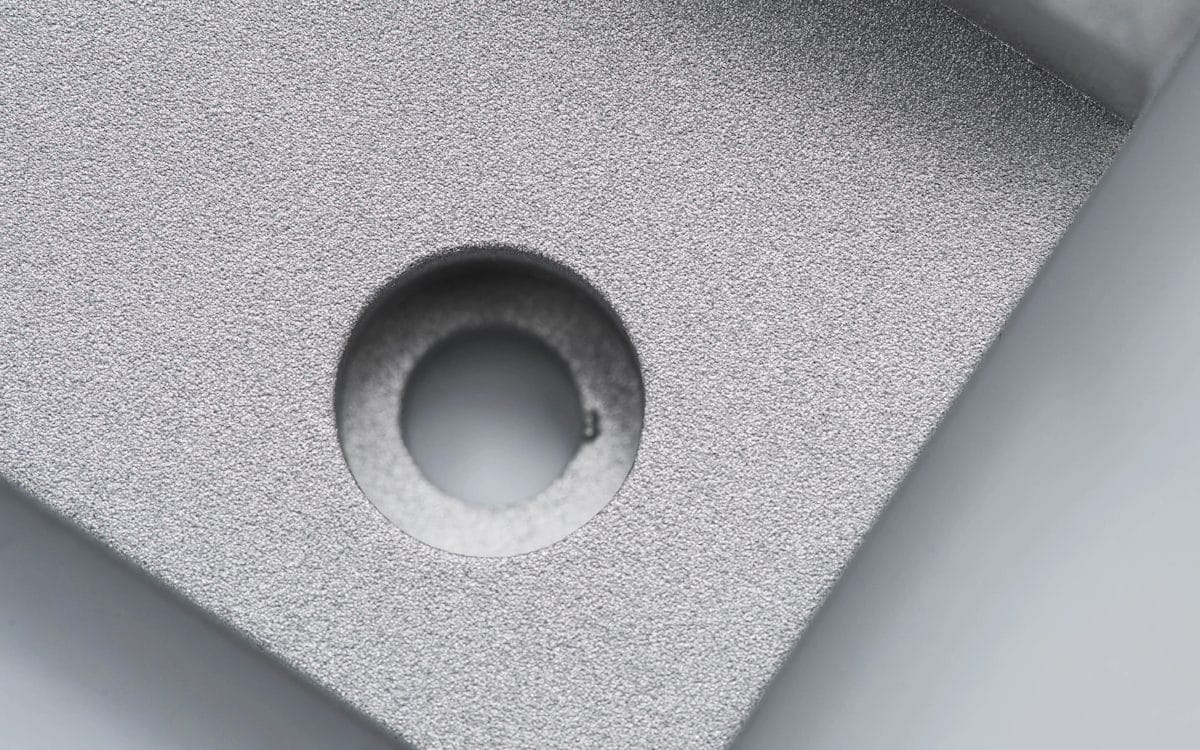

One of the most common challenges with SLS is the rough surface texture of the printed parts. While SLS parts are mechanically strong, they can often have a powdery, grainy surface, especially in areas where the laser has not completely sintered the material. To improve aesthetics and functionality, parts often require post-processing treatments such as bead blasting, polishing, or coating.

Material Limitations

SLS can print using a variety of materials, the selection is still more limited compared to other 3D printing technologies like FDM or SLA. In addition, the mechanical properties of SLS materials can vary depending on the material type, powder quality, and laser settings. For example, while materials like Nylon and Polyamide are commonly used, they may not be suitable for all applications, particularly those requiring extreme heat resistance or flexibility.

Warping and Shrinkage

During the cooling stage of the SLS process, parts may undergo distortion or reduction in size. This is especially true when using materials with higher thermal expansion rates. Such distortions can affect the final dimensions and accuracy of the part, which can be problematic for applications requiring tight tolerances. Effective temperature control and careful design considerations are crucial to mitigating these issues.

Machine Costs and Maintenance

SLS printers are typically expensive, making it difficult for smaller businesses to invest in the technology. Additionally, these machines require regular maintenance to ensure that the lasers and powder management systems function properly. This adds to the overall cost of using SLS for manufacturing and rapid prototyping.

Printing Speed

SLS is slower compared to some other 3D printing techniques, particularly for large parts or multiple items. While SLS is excellent for producing highly detailed parts with complex geometries, the layer-by-layer process can take longer than methods that use different mechanisms for material deposition.
